Clutch System: Flywheel: Removal

  1. Remove the transmission assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) > Manual Transmission Assembly >  REMOVAL  .
  2. Remove the clutch cover and clutch disc. Ref. to CLUTCH SYSTEM > Clutch Disc and Cover >  REMOVAL   .
  3. Attach the ST.

    ST 498497100 CRANKSHAFT STOPPER

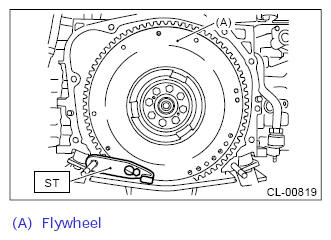

    Fig 1: Attaching Crankshaft Stopper (ST 498497100)
    G10407634Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the flywheel and crankshaft position sensor plate.
  5. Drive out the pilot bearing from the flywheel.
