Turbo Model

Install in the reverse order of removal.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

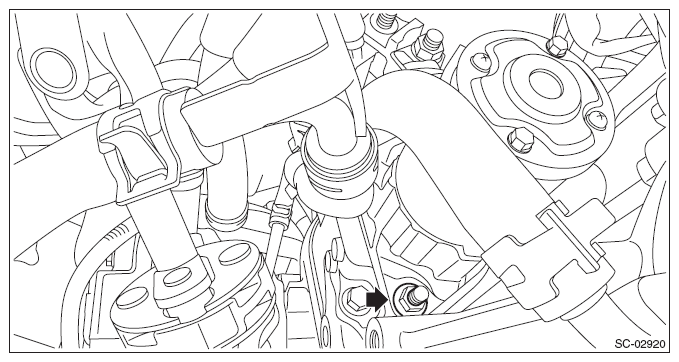

Fig 1: Locating Bolt At Top Of Starter

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Locating Nut At Bottom Of Starter

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 3: Locating CVTF Cooler Pipe Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 4: Locating Starter Nut And Bolt

Courtesy of SUBARU OF AMERICA, INC.
