Switch Assembly

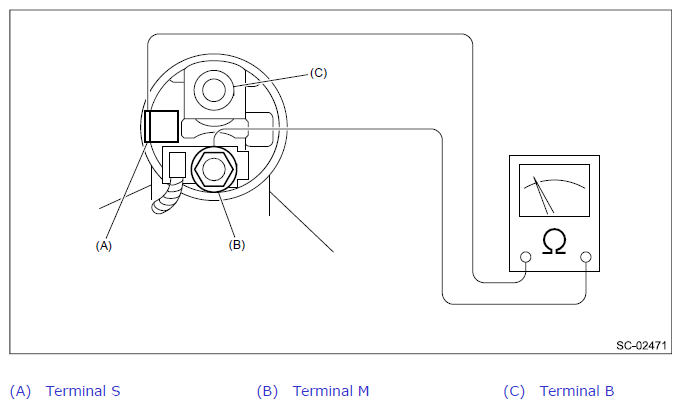

Using a circuit tester (set to "ohm"), check that there is continuity between terminals S and M, and between terminal S and ground. Also check to be sure there is no continuity between terminal M and B.
Resistance between switch assembly terminals:
| Terminals | Standard |
|---|---|
| S - M | 1 Ω or less |
| S - Ground | 1 Ω or less |
| M - B | 1 MΩ or more |
