Battery Current Sensor & Battery Temperature Sensor: Removal

1. Disconnect the ground cable from battery.
2. Remove the battery terminal boot.

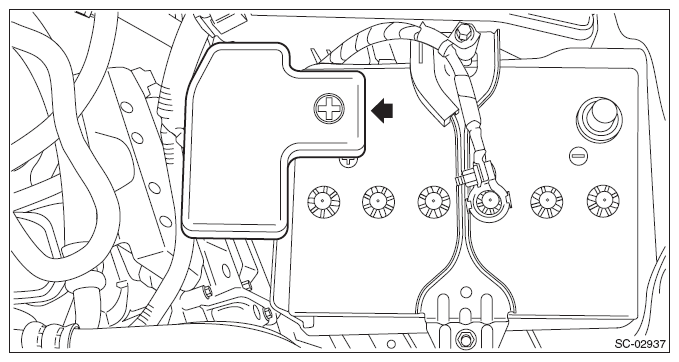

   Fig 1: Locating Battery Terminal Boot

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the nut which holds the battery current & temperature sensor.
   CAUTION:

   • Hold the terminal bracket with your hand when loosening the nut to avoid deforming the bracket.
   • While working, be sure to protect metal parts with cloth.

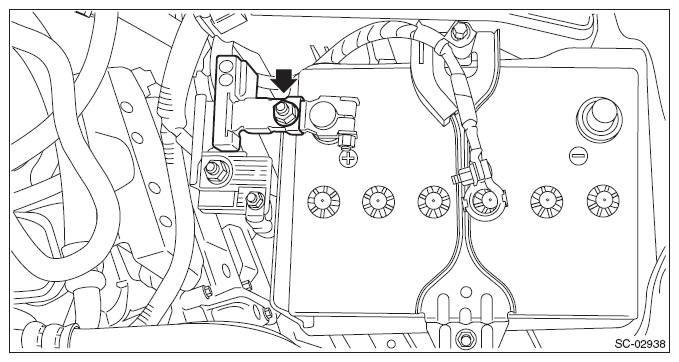

   Fig 2: Locating Battery Current Sensor & Battery Temperature Sensor Nut

   Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect the connectors from the battery current & temperature sensor.

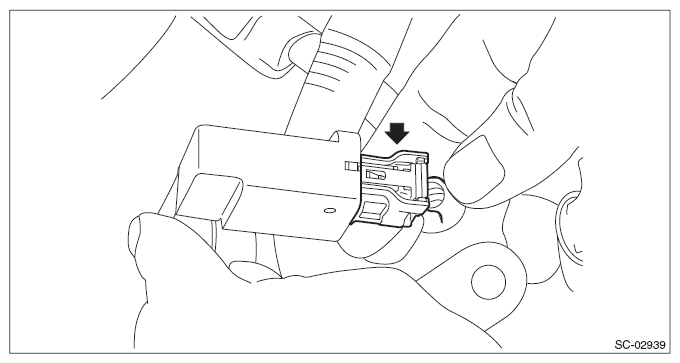

Fig 3: Disconnecting Connectors From Battery Current Sesor & Battery Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.
