Rear Seat

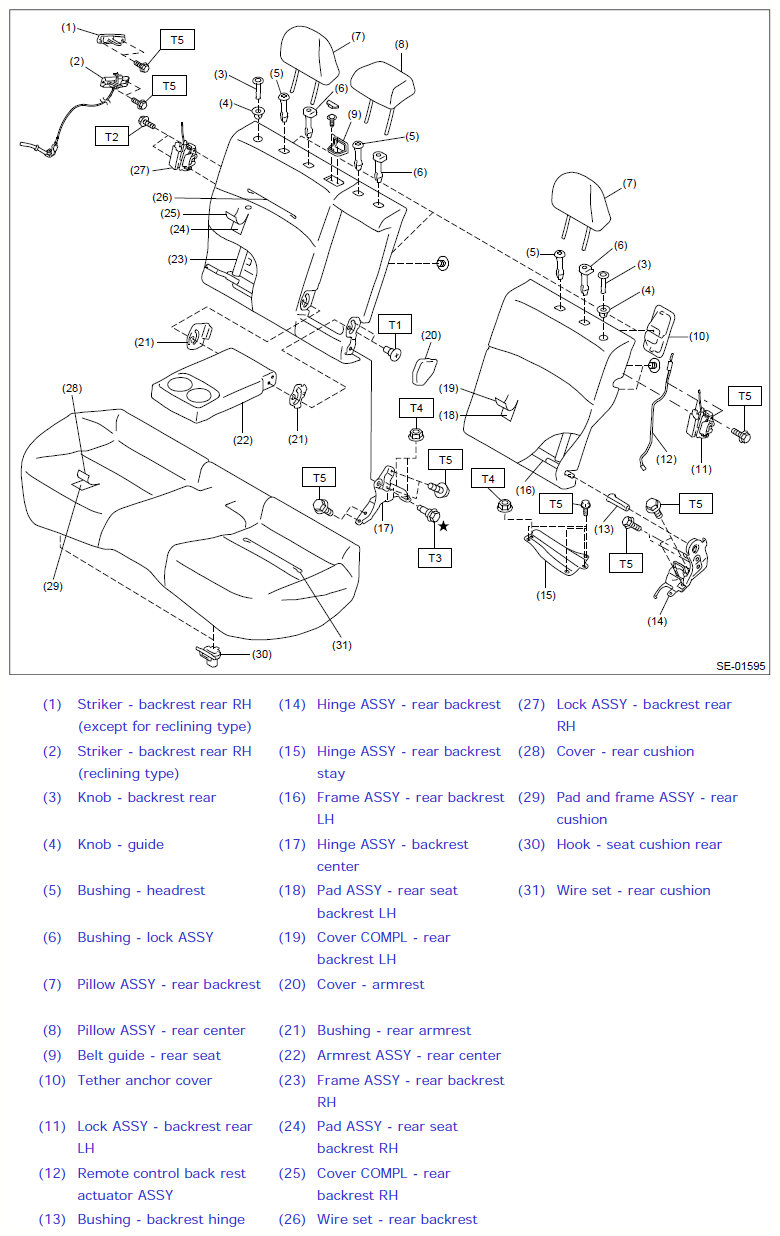

Fig 1: Exploded View Of Rear Seat

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 9.8 (1.0, 7.2)

T2: 17.6 (1.79, 13.0)

T3: 22.5 (2.29, 16.6)

T4: 24.5 (2.50, 18.1)

T5: 33 (3.36, 24.3)
