Transmission Control Module (TCM): Installation

Install the TCM to the bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Identifying TCM
Courtesy of SUBARU OF AMERICA, INC.
Install the harness connector to TCM.
NOTE: Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.

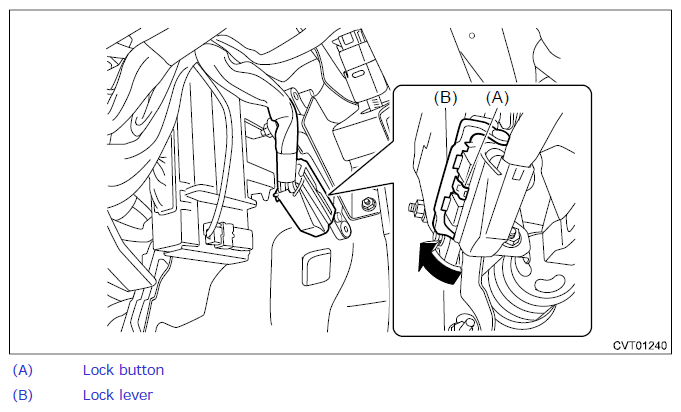

Fig 2: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Perform the diagnosis again. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS) > LEARNING CONTROL .
