Transfer And Extension Case

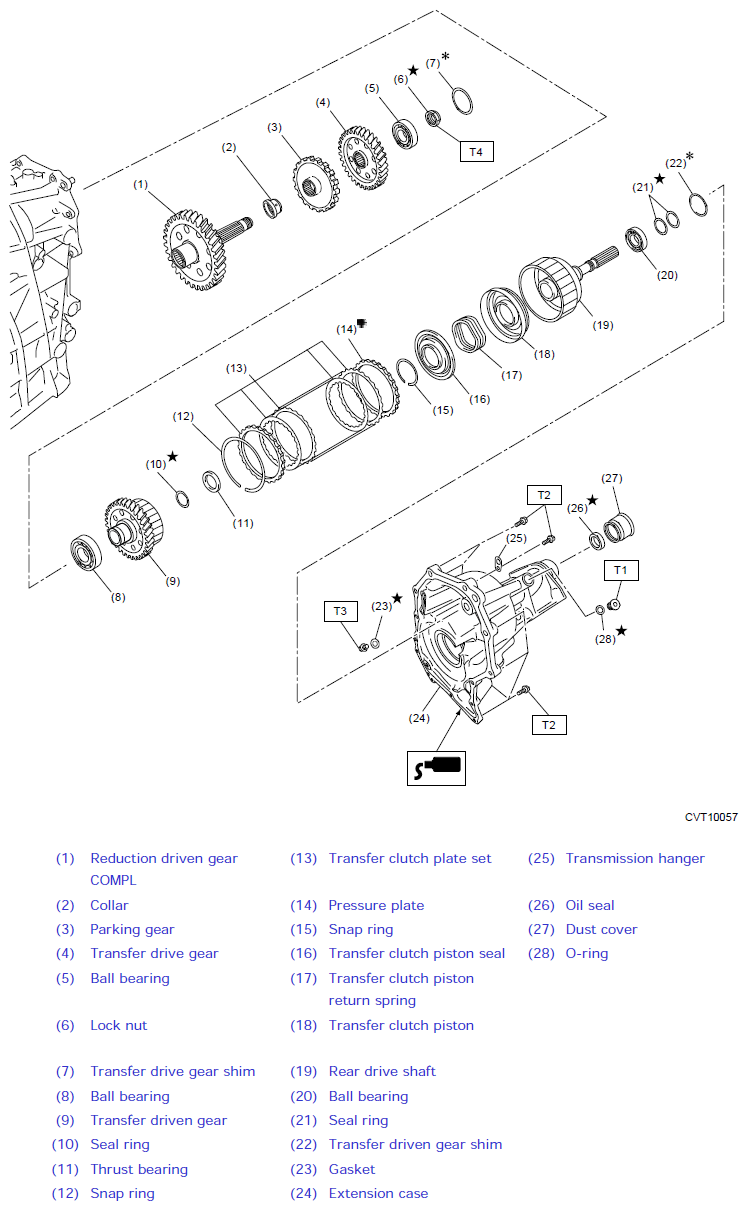

Fig 1: Exploded View Of Transfer And Extension Case

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 22 (2.2, 16.2)

T2: 25 (2.5, 18.4)

T3: 35 (3.6, 25.8)

T4: 95 (9.7, 70.1)
