Front Differential Gear

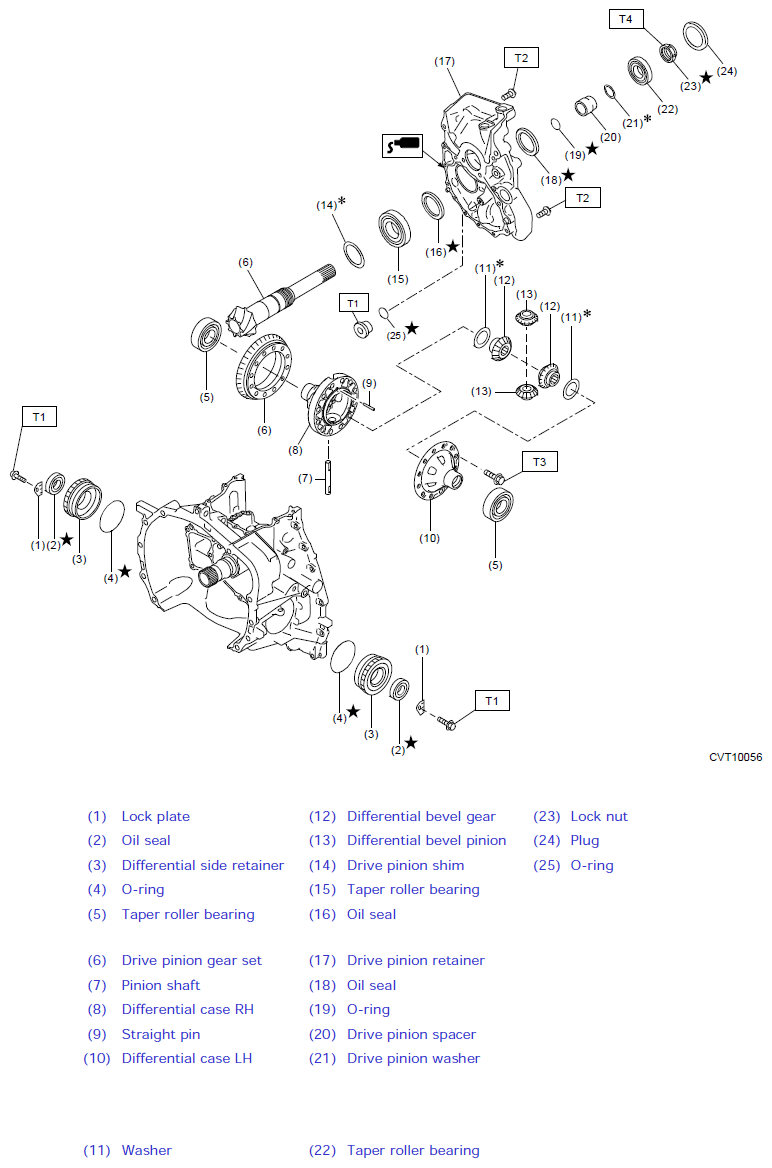

Fig 1: Exploded View Of Front Differential Gear

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 22 (2.2, 16.2)

T2: 25 (2.5, 18.4)

T3: 43 (4.4, 31.7)

T4: 64 (6.5, 47.2)

T5: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) > Drive Pinion Shaft Assembly >  ASSEMBLY   .
