Continuously Variable Transmission (Diagnostics): Electrical Component Location: Location: Sensor

• Non-turbo model

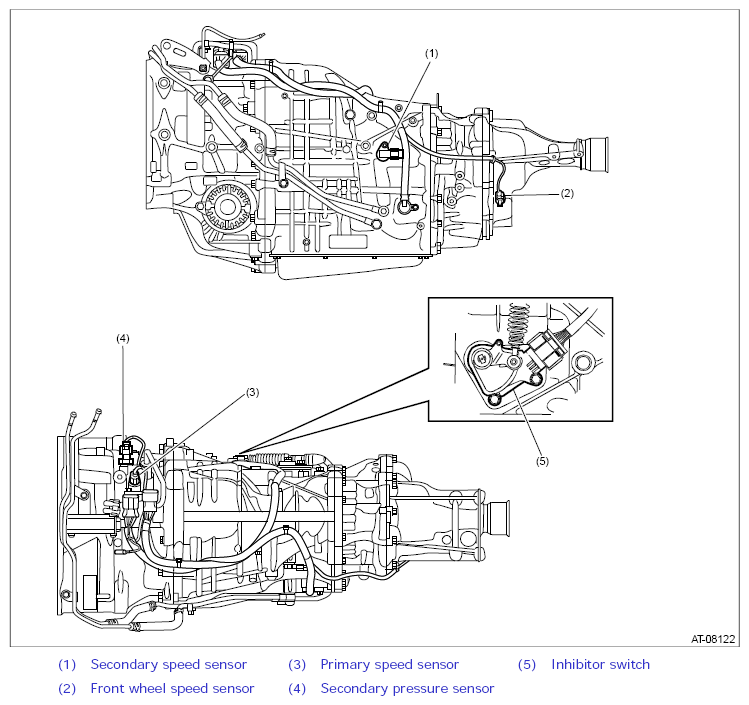

Fig 1: Sensor Electrical Component Location (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

• Turbo model

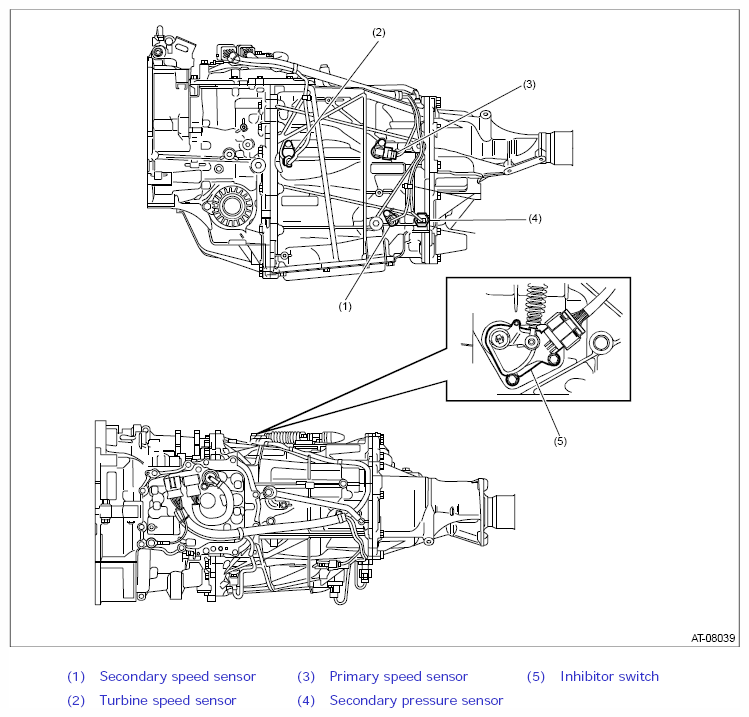

Fig 2: Sensor Electrical Component Location (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.
