Clearance Check

WARNING: This page is about a different car, the 2016 Subaru Impreza and 2016 Subaru Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Check for clearance is applied only to LED model.

Measure the clearance between the end of the stop light switch and the stopper.
Specification:

Clearance (A) of the stop light switch: 1 mm - 2 mm (0.04 in - 0.08 in)

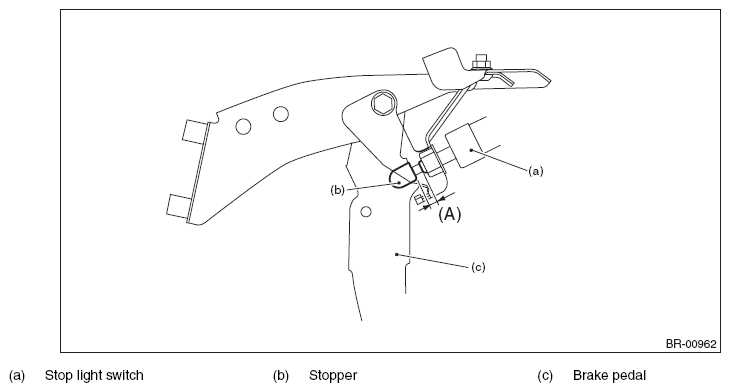

Fig 1: Measuring Clearance Between End Of Stop Light Switch And Stopper
Courtesy of SUBARU OF AMERICA, INC.
Adjust the position of the stop light switch if the inspection result is not within the standard value. < Ref. to ADJUSTMENT , Stop Light Switch. >
