Headlight Assembly: Removal

WARNING: This page is about a different car, the 2016 Subaru Impreza and 2016 Subaru Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not perform work with wet hands, because there is a possibility of electrical shock.
  • The HID type uses very high voltages for the lighting circuit. Make sure that the power supply is turned OFF before working.
  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the air intake duct. (When removing the right side of gasoline engine model) < Ref. to REMOVAL , Air Intake Duct. >
  3. Remove the clip, and remove the bracket - grille.
    CAUTION: To prevent damage to the bracket - grille, make sure to remove all clips.

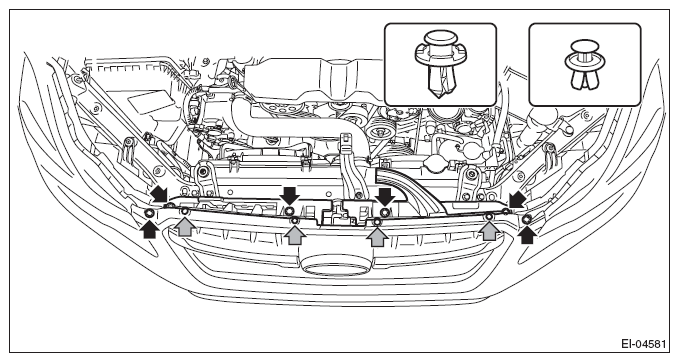

    Fig 1: Locating Bracket Clips - Grille
    G10316770Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bumper face - front. < Ref. to REMOVAL , Front Bumper. >
  5. Remove the bolts and clips, and remove the bracket - front bumper corner.

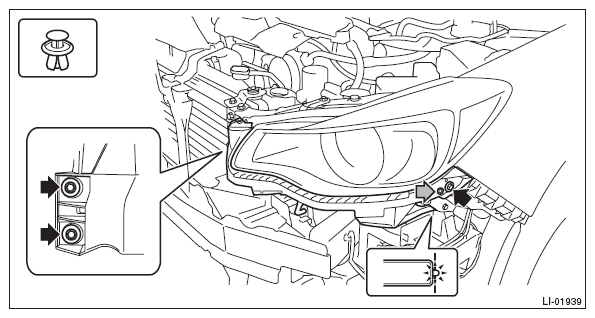

    Fig 2: Locating Bracket Bolts And Clips - Front Bumper Corner
    G10317092Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the light assembly - head.
    1. Disconnect the connector.
    2. Remove the bolts and clips, and remove the light assembly - head.

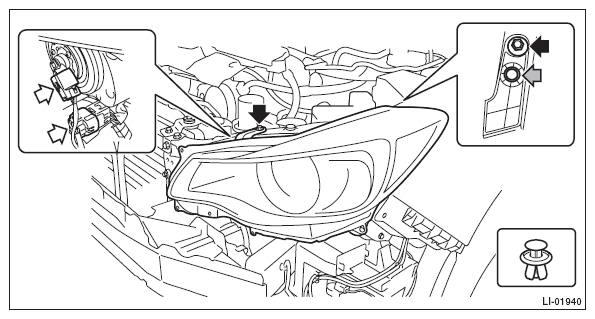

      Fig 3: Locating Light Assembly Bolts And Clips - Head
      G10317093Courtesy of SUBARU OF AMERICA, INC.
