Front Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2016 Subaru Impreza and 2016 Subaru Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
Lift up the vehicle.
Remove the screw and clips, and turn over the front side of the mud guard - front.

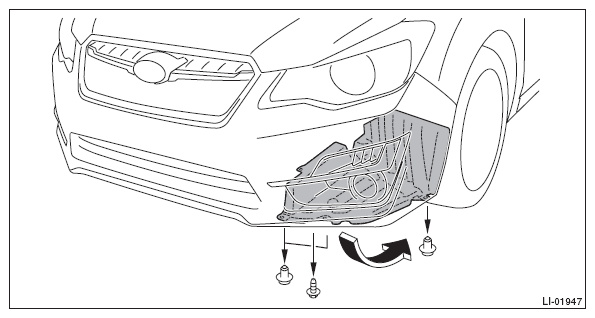

Fig 1: Turning Over Front Side Mud Guard - Front
Courtesy of SUBARU OF AMERICA, INC.
From the bottom of the bumper face - front, remove the fog light assembly - front.
1. Disconnect the connector.
2. Remove the bolts and clips, and remove the fog light assembly - front.
  - Model without SRF

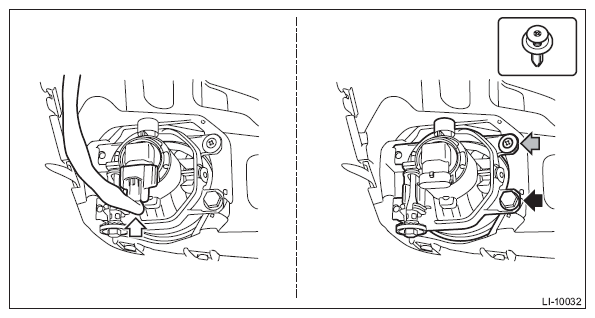

    Fig 2: Locating Fog Light Assembly Bolts And Clips (Model Without SRF)
    Courtesy of SUBARU OF AMERICA, INC.
  - Model with SRF

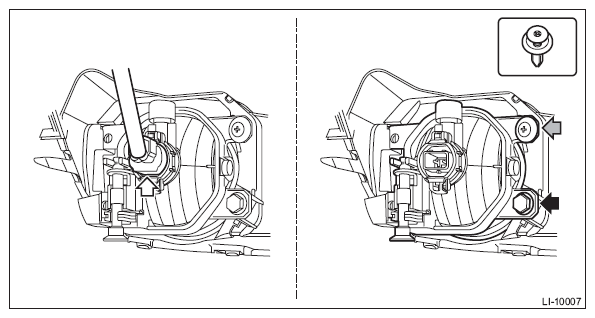

    Fig 3: Locating Fog Light Assembly Bolts And Clips (Model With SRF)
    Courtesy of SUBARU OF AMERICA, INC.
