Rearview Camera System: Removal

WARNING: This page is about a different car, the 2017 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear gate and the garnish assembly - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Garnish>REMOVAL .
  3. Remove the rearview camera assembly.
    CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.
    1. Disconnect the connector.
    2. Disconnect the claws and then remove the rearview camera assembly.

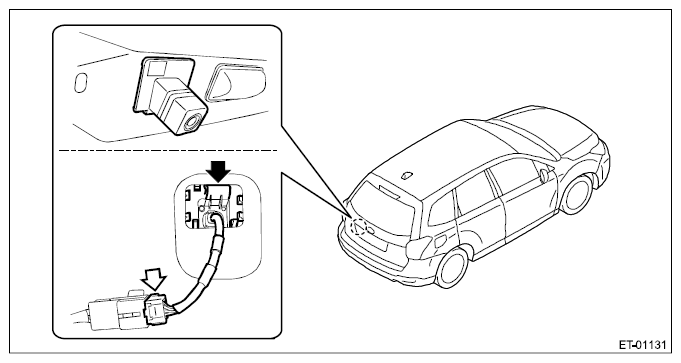

Fig 1: Locating Claws And Connector Of Rearview Camera Assembly
G10408368Courtesy of SUBARU OF AMERICA, INC.
