External Connection Terminal: Removal
WARNING: This page is about a different car, the 2017 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .

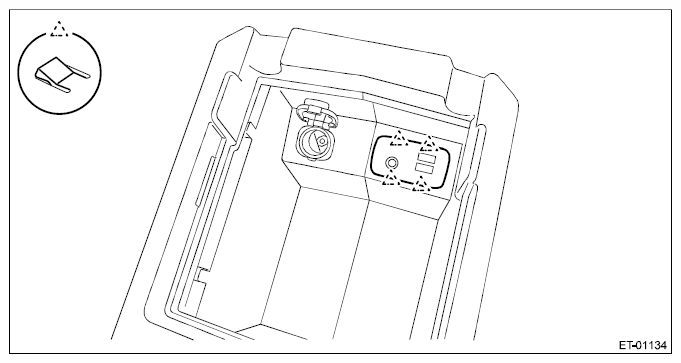

- While pressing the claw, press it in from the rear to remove the unit assembly - AUX.
