Stereo Camera

WARNING: This page is about a different car, the 2017 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

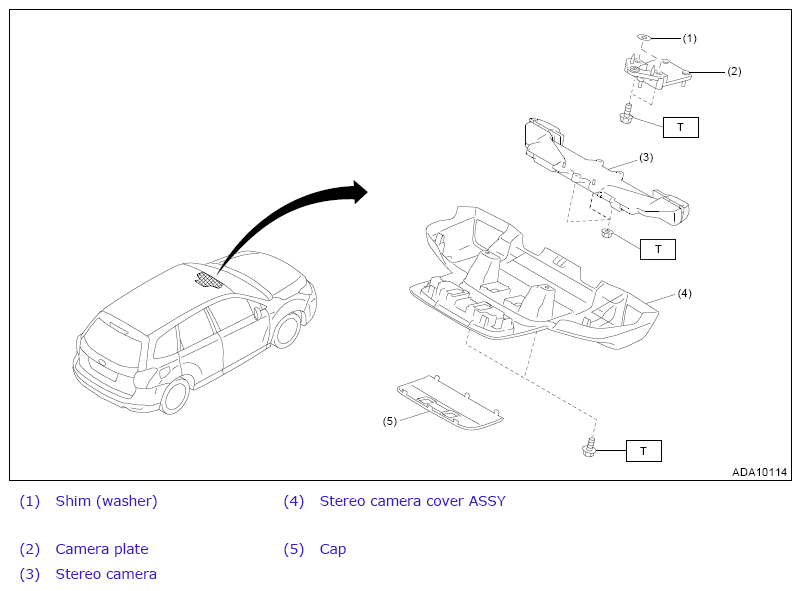

Fig 1: Identifying Stereo Camera Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 5.5±1 (0.56±0.1, 4.1±0.7)
