Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2017 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the light assembly - rear combination.
    CAUTION: Be careful not to damage the clips.
    1. Release the bolts and clips, then pull out the light assembly - rear combination to the vehicle rear.
    2. Disconnect the connector and remove the light assembly - rear combination.

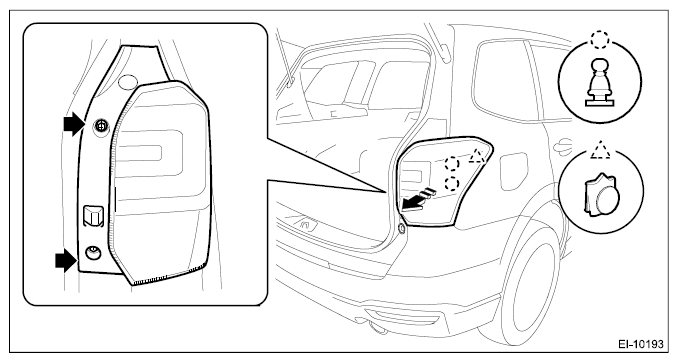

Fig 1: Locating Light Assembly - Rear Combination Bolts And Clips
G11268530Courtesy of SUBARU OF AMERICA, INC.
