Different car
>>
Section 157 (Lighting System)
>>
High Beam Assist System
>>
Inspection
>>
System Block Diagram
System Block Diagram
WARNING:
This page is about a different car, the 2017 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

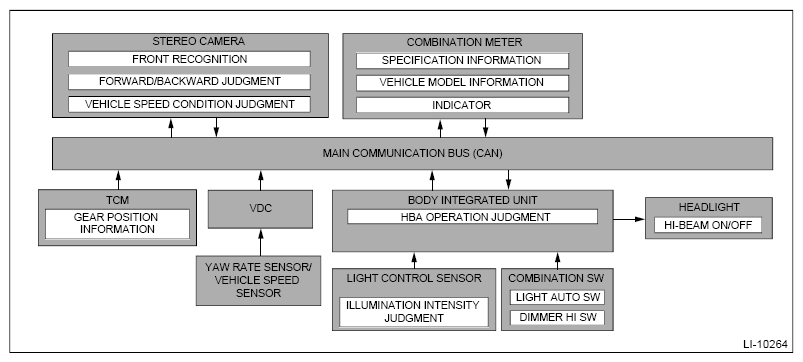

Fig 1: High Beam Assist System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
