Brake Pedal

WARNING: This page is about a different car, the 2017 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CVT model

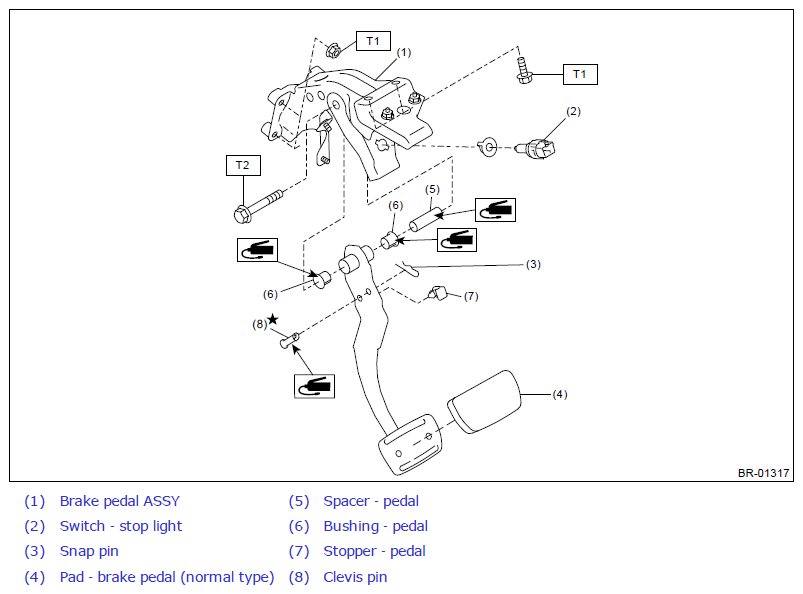

Fig 1: Exploded View Of Brake Pedal With Torque Specification (CVT Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.84, 13.3)

T2: 30 (3.06, 22.1)
MT model

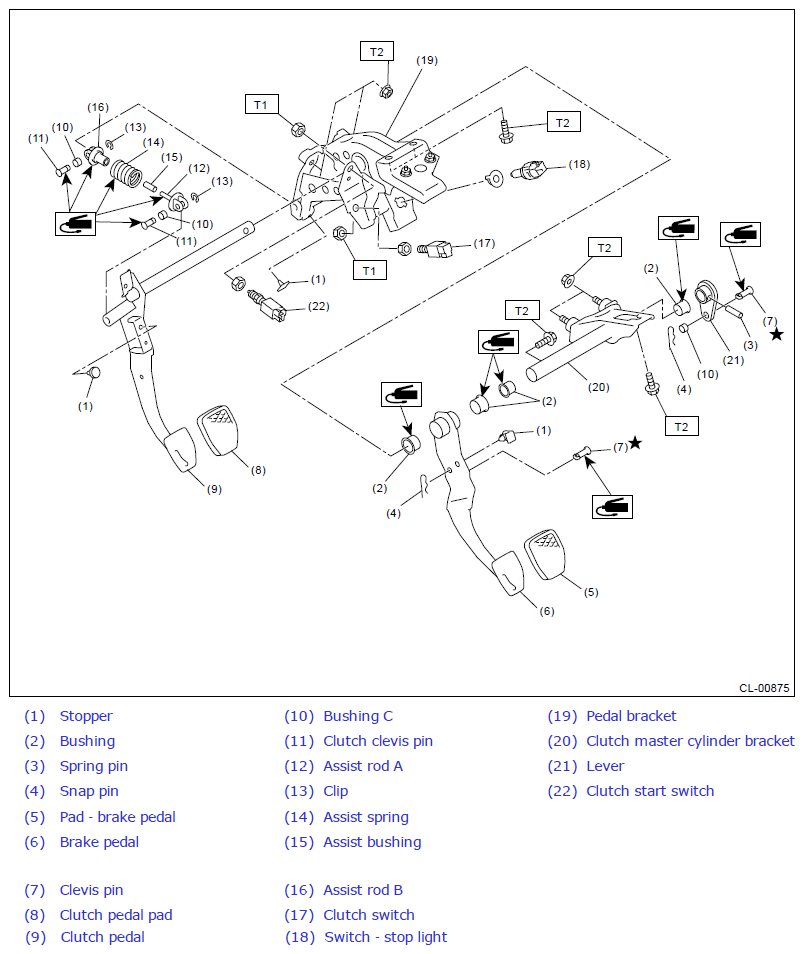

Fig 2: Exploded View Of Brake Pedal With Torque Specification (MT Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.82, 5.9)

T2: 18 (1.84, 13.3)
