Engine Wiring Harness: Removal

Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO) > Fuel > RELEASING OF FUEL PRESSURE .
Disconnect the ground cable from battery.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO) > Intake Manifold > REMOVAL .
Disconnect the connector from the engine.

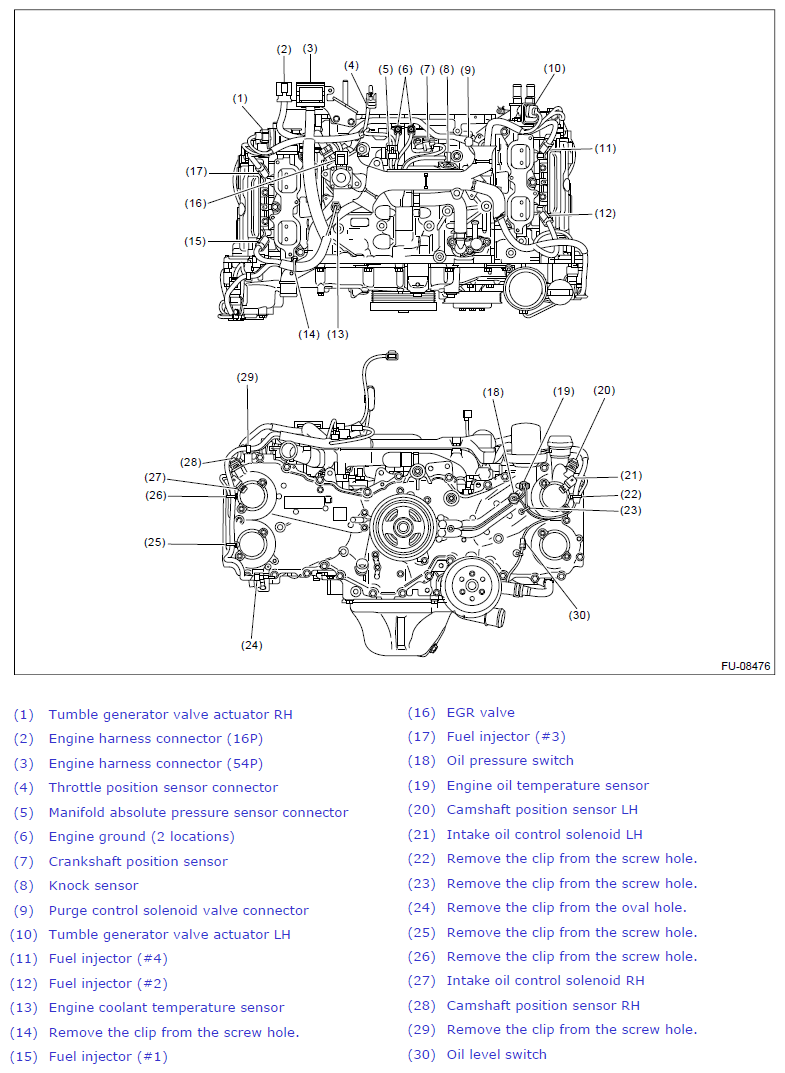

- Structural diagram 1
Fig 1: Fuel Injection (Fuel Systems) Structural Diagram 1
Courtesy of SUBARU OF AMERICA, INC.

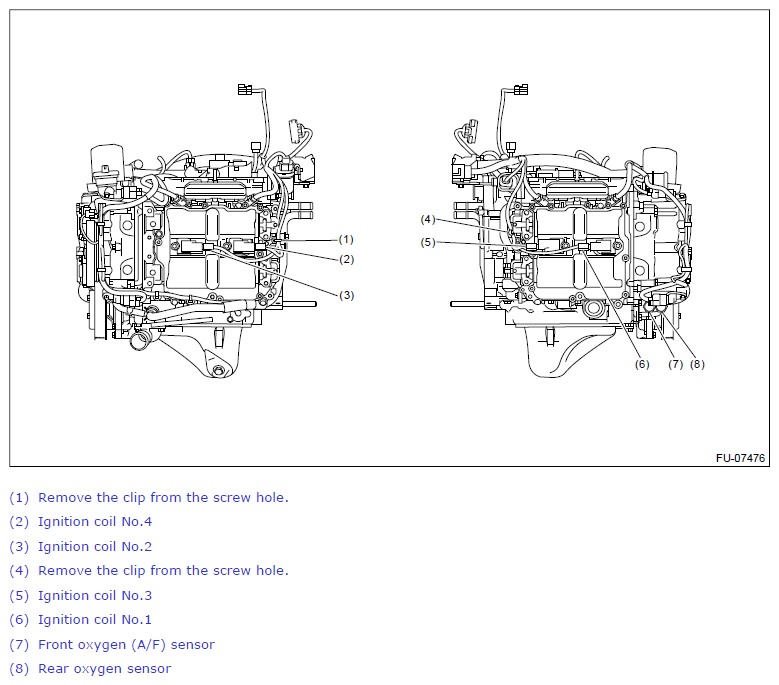

- Structural diagram 2
Fig 2: Fuel Injection (Fuel Systems) Structural Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine wiring harness.

Fig 3: Locating Engine Wiring Harness Bolt

Courtesy of SUBARU OF AMERICA, INC.
