Traction Control
>>
Vehicle Dynamics Control (VDC)
>>
VDC Sequence Control
>>
Operation
>>
Conditions For VDC Sequence Control
Conditions For VDC Sequence Control
NOTE:
The control operation starts at point A.

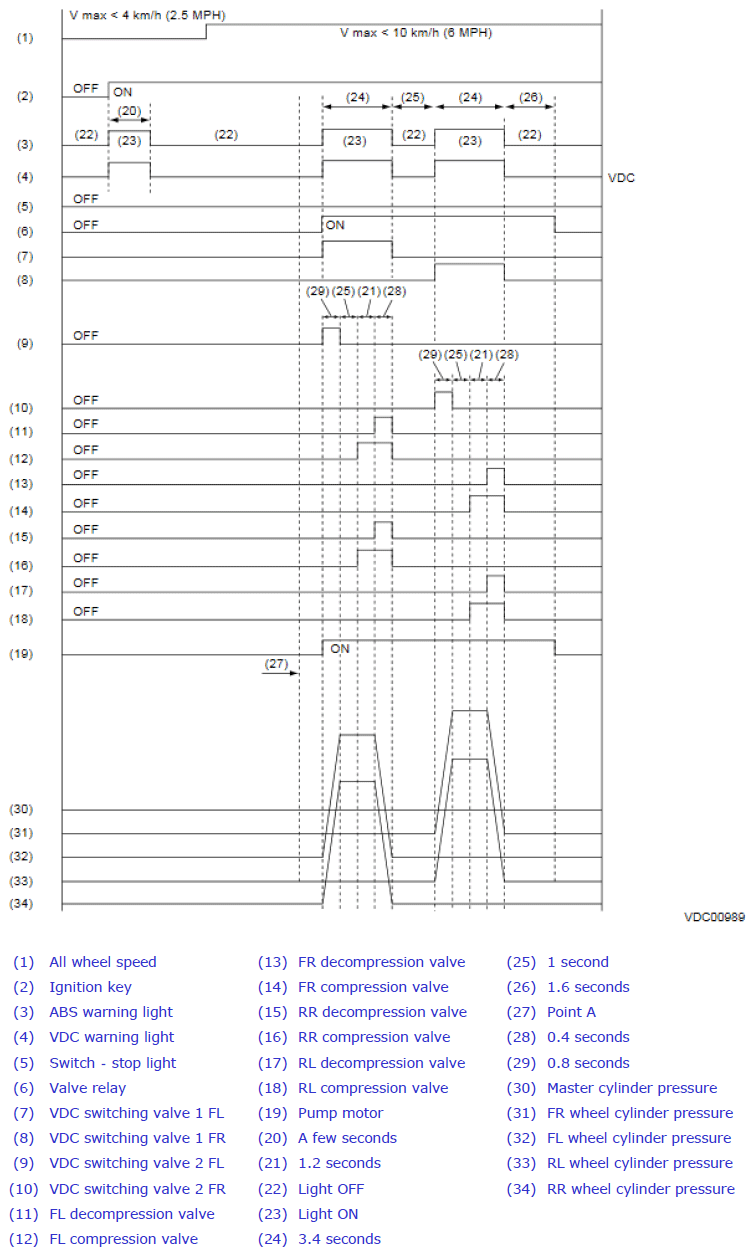

Fig 1: VDC Sequence Control Graph
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
