Rear Seat: Assembly

CAUTION:
  • Do not reuse hog rings.
  • Secure the hog ring using hog ring pliers.
  • Install the hog rings to the specified points securely and make sure that there is no wrinkle or twisting on the cover COMPL - rear backrest.
  1. Assemble the cover COMPL - rear backrest and the cover - rear cushion in the same manner as for the front seat. Ref. to SEATS > Front Seat > ASSEMBLY .
  2. Make sure that all hog rings (A) and wire clips (B) are attached securely.

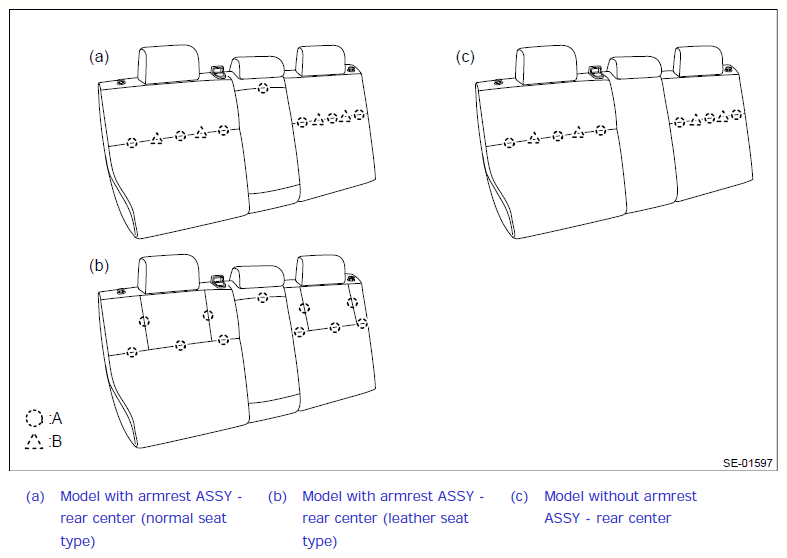

    Fig 1: Identifying Hog Rings And Wire Clips
    G10408556Courtesy of SUBARU OF AMERICA, INC.
  3. Make sure that all hog rings (A) are attached securely.

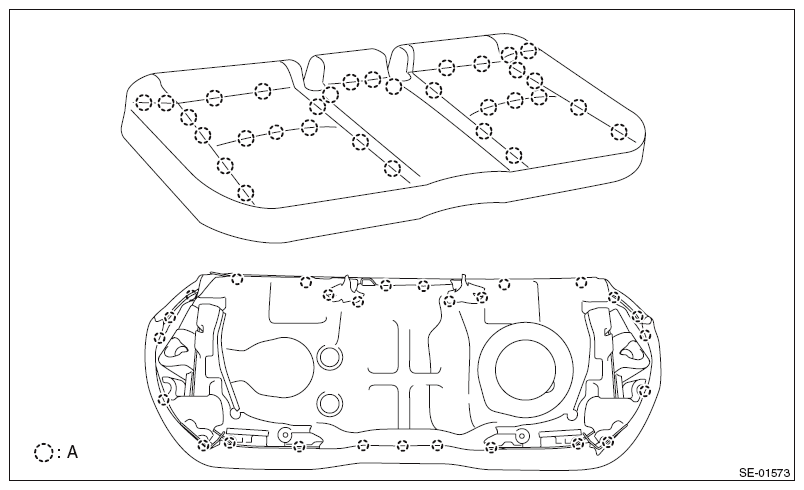

    Fig 2: Identifying Hog Rings
    G09484600Courtesy of SUBARU OF AMERICA, INC.
  4. Before installation, check the following items.
    • No tear and fray on the cover COMPL - rear backrest and the cover - rear cushion.
    • No fray or deformation on each wire cable.
  5. Install each part in the reverse order of removal.
