Roof Spoiler

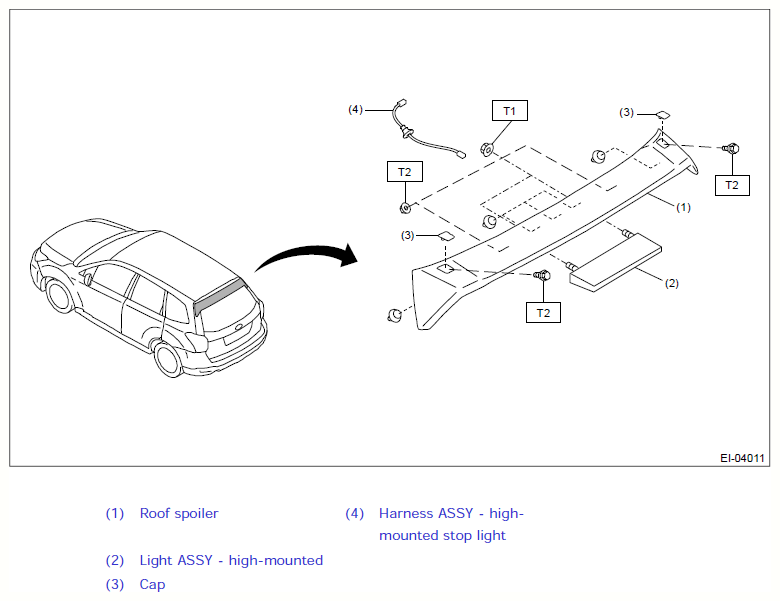

Fig 1: Exploded View Of Roof Spoiler

G10408750

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.5 (0.46, 3.3)

T2: 7.5 (0.76, 5.5)
