Transfer And Extension Case

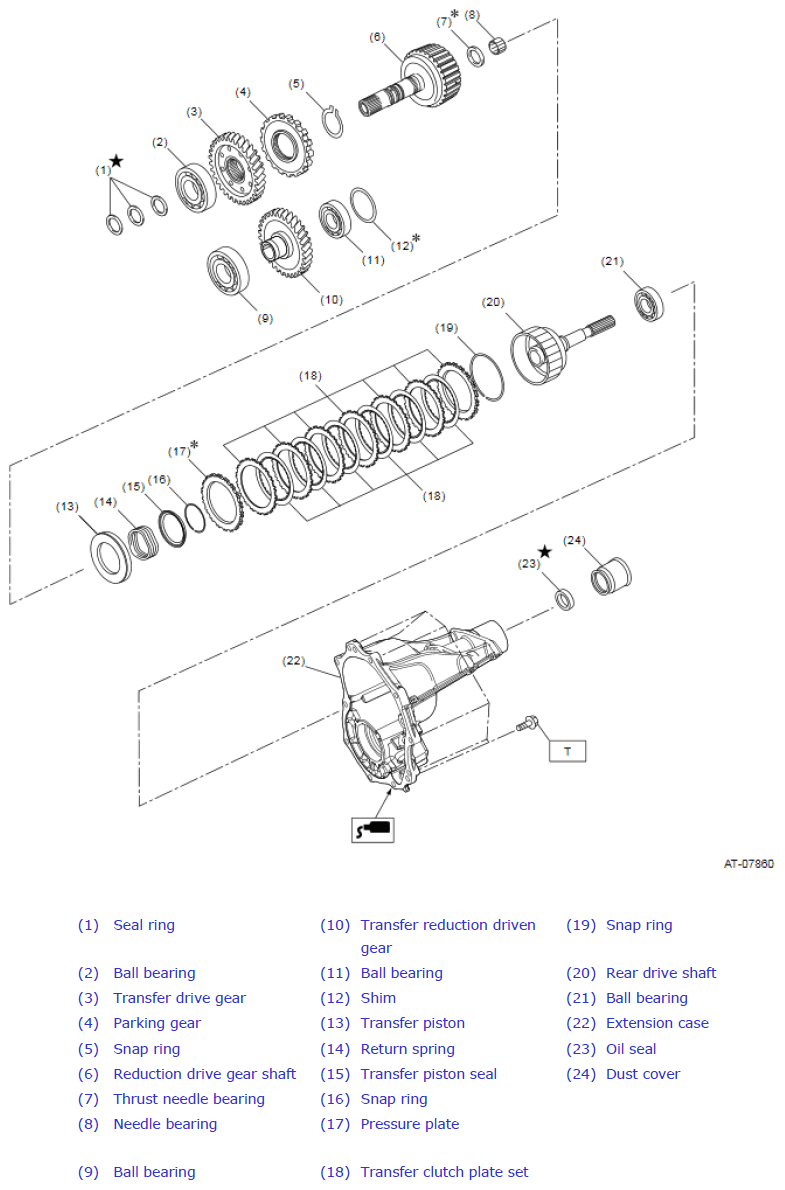

Fig 1: Exploded View Of Transfer And Extension Case
G10406738Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
