General Description
>>
Components With Torque Specifications
>>
Oil Pump Assembly
Oil Pump Assembly

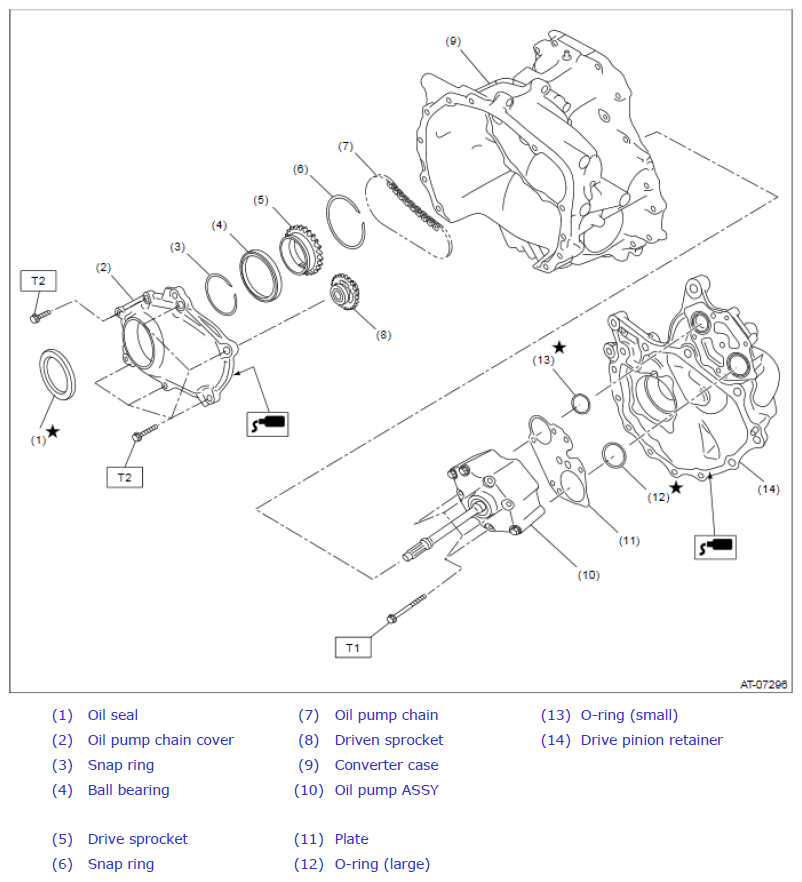

Fig 1: Exploded View Of Oil Pump Assembly
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m,
ft-lb)
T1: 8.5 (0.9, 6.3)
T2: 24 (2.4, 17.7)
Courtesy of SUBARU OF AMERICA, INC.
