Disassembly Of Combination Meter Assembly

CAUTION:

Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
Be careful not to apply excessive force to the trip knob.
Be sure not to touch the meter indicator needle.

Release the claw, and remove the glass - combination meter (A) and visor - combination meter (B) from the meter - main assembly (C).

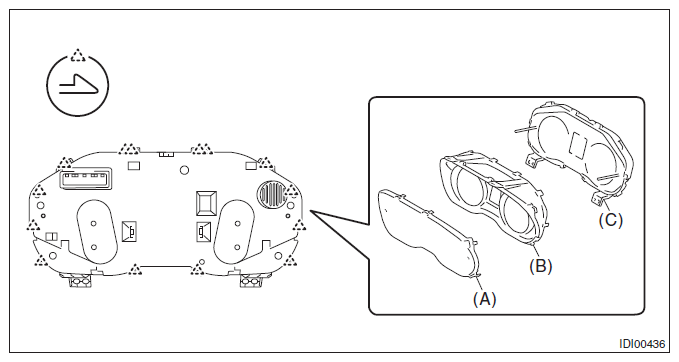

Fig 1: Identifying Combination Meter Glass, Combination Meter Visor And Main Meter Assembly With Claws

Courtesy of SUBARU OF AMERICA, INC.
