Door Lock Assembly
Door Lock Assembly

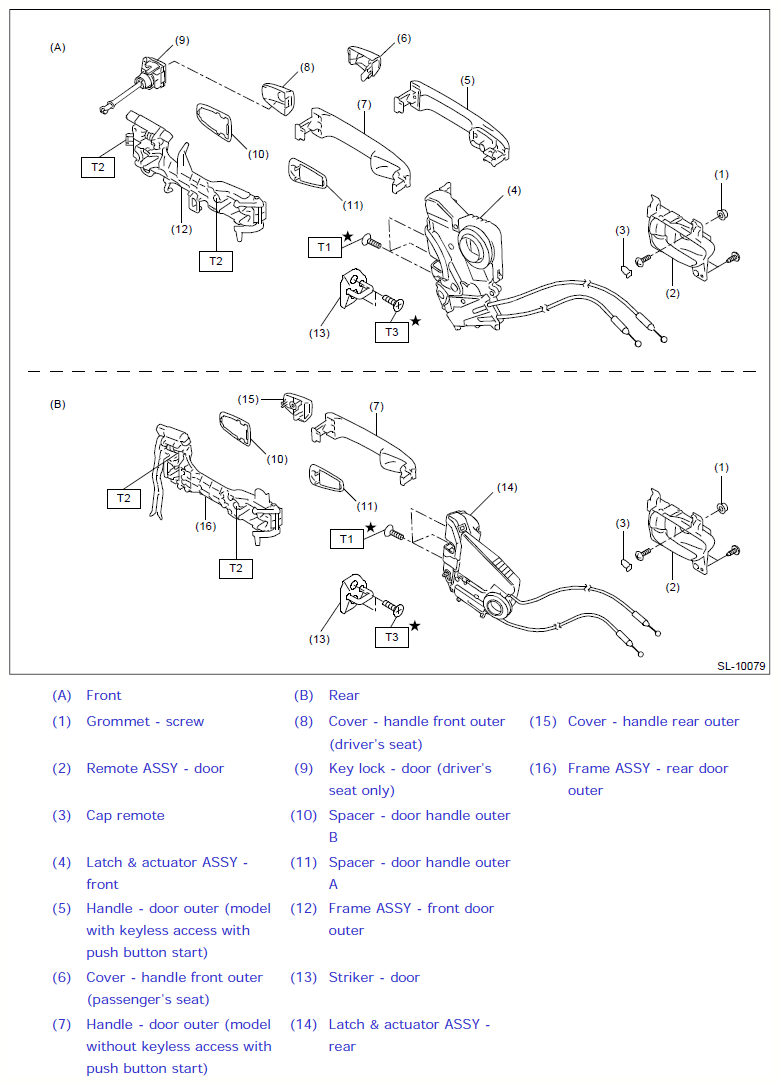

Fig 1: Exploded View Of Door Lock Assembly
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.5 (0.7, 4.8)
T2: 7.5 (0.8, 5.5)
T3: 18 (1.8, 13.3)
Courtesy of SUBARU OF AMERICA, INC.
