Front Inner Remote: Removal

  1. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM > Door Trim > -- > FRONT DOOR .
  2. Remove the screw, and remove the remote assembly - door.
    CAUTION: The remote assembly - door is tightened with the plate. Be careful not to drop or damage the part.

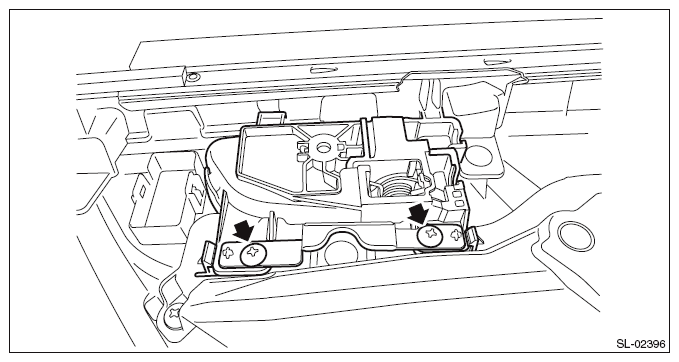

Fig 1: Locating Remote Assembly Screws
G09484635Courtesy of SUBARU OF AMERICA, INC.
