Clutch Assembly

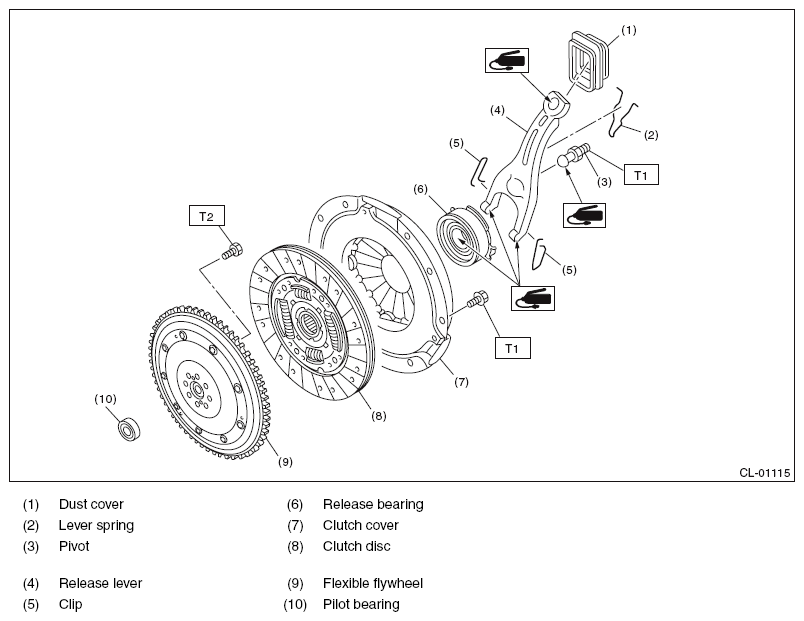

Fig 1: Exploded View Of Clutch Assembly
G10323120Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: < Ref. to  INSTALLATION  , Flywheel. >
