CROSSTREK Model

Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)

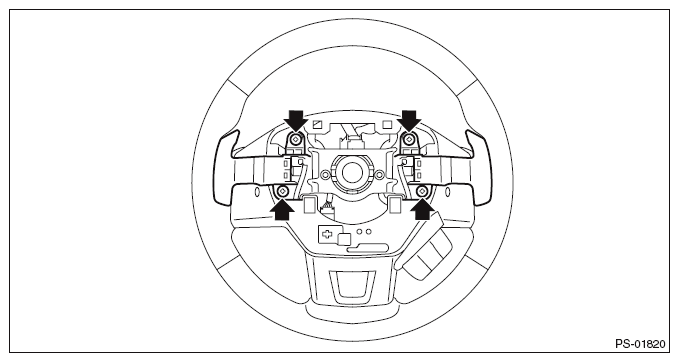

Fig 1: Locating Paddle Shift Switch Screws
Release the claws and remove the screws, then detach the cover - spoke.

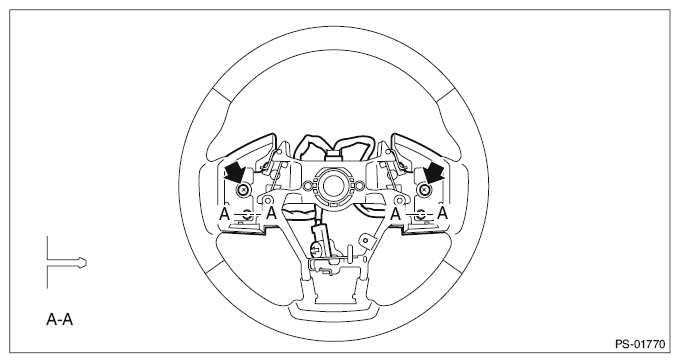

Fig 2: Locating Spoke Cover Screws
Remove connector and screw, and remove the cover - steering wheel LWR.

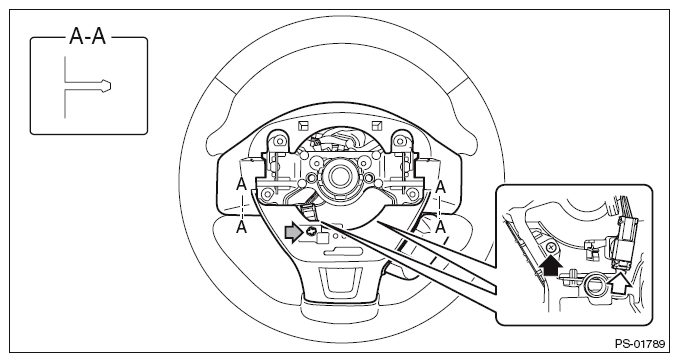

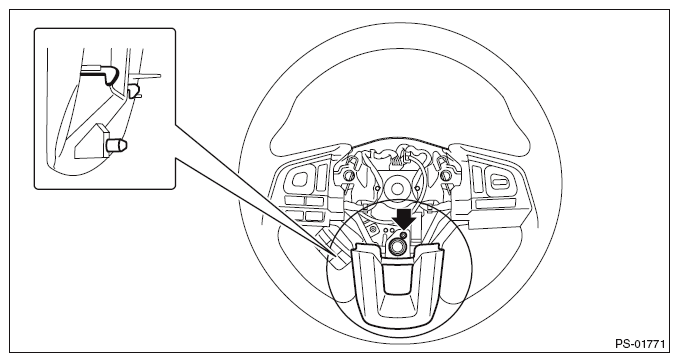

Fig 3: Locating Steering Wheel LWR Screw
Release the claws and remove the screws, then detach the satellite switch.

Fig 4: Locating Satellite Switch Screws
Release the claws, and then remove the MID switch.

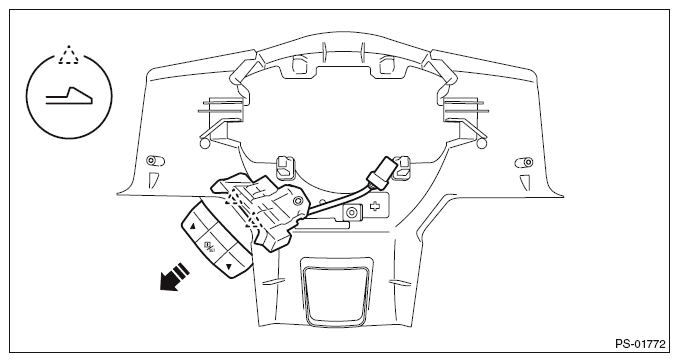

Fig 5: Removing MID Switch
