Conditions For VDC Sequence Control
Conditions For VDC Sequence Control
NOTE:
The control operation starts at point A.

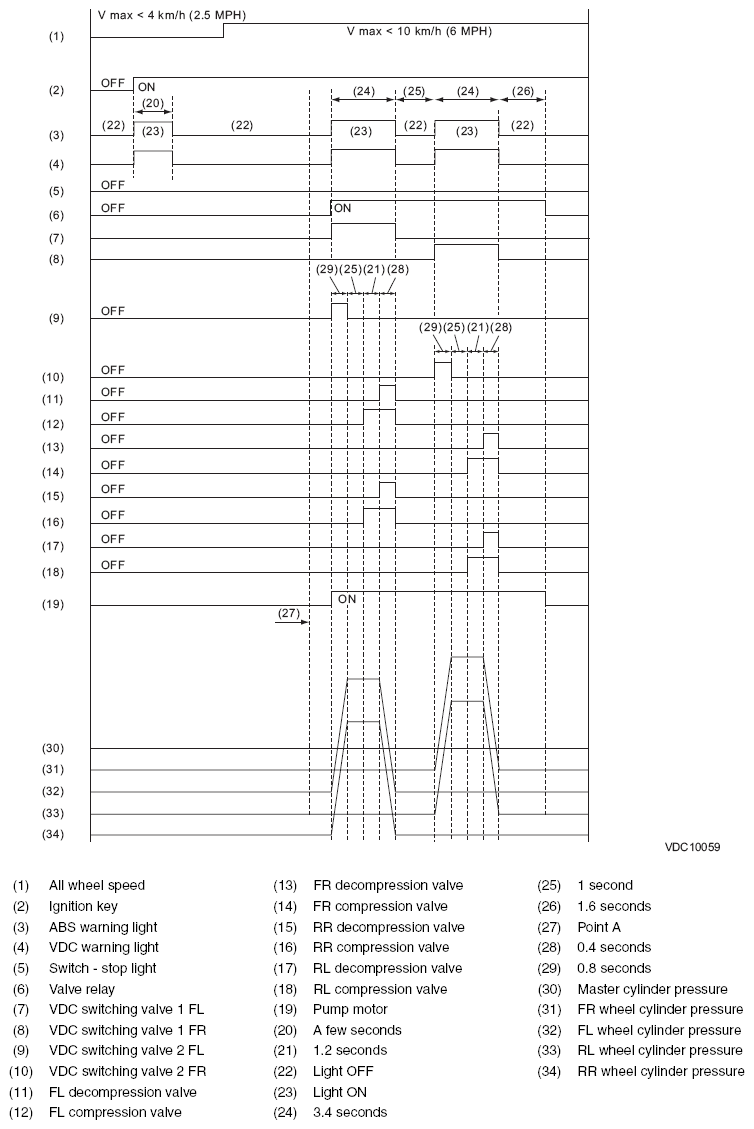

Fig 1: VDC Control Sequence Graph
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
