Engine Control System (Diagnostics) (Hybrid) - Introduction
>>
Electrical Component Location
>>
Location
>>
Control Module
Control Module

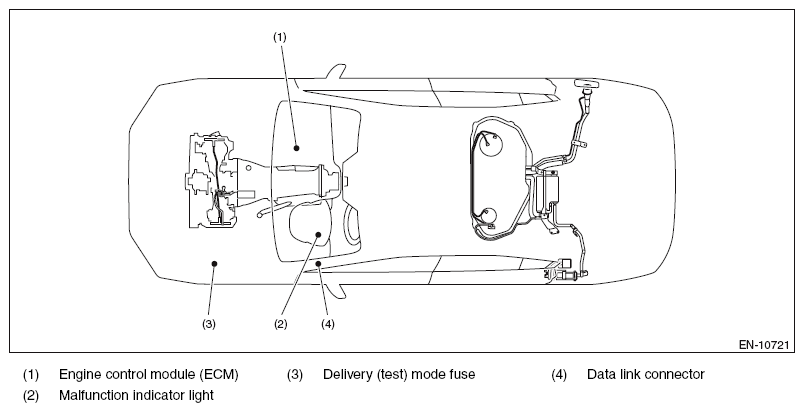

Fig 1: Engine Control Module Components Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

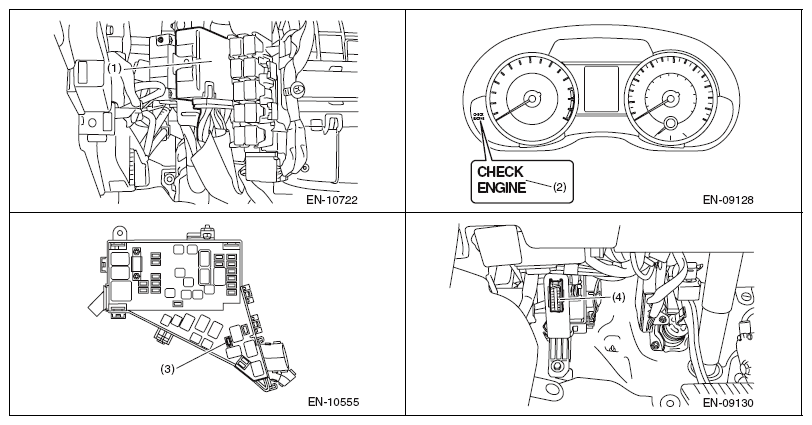

Fig 2: Engine Control Module Components Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
