Tumble Generator Valve Assembly: Removal

  1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
  2. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery, disconnect the ground terminal from 12V engine restart battery sensor.
  3. Remove the collector cover.
    1. Carefully pull up the front of collector cover at two positions (A).
    2. Carefully pull up the rear of collector cover at two positions (B) while moving it backward.
      NOTE: Be careful not to contact the fuel delivery tube when moving the collector cover rearward.

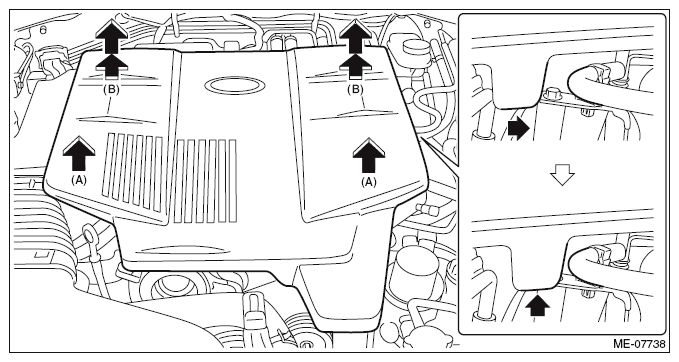

      Fig 1: Removing Collector Cover
      G09486016Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
  5. Disconnect the connector (A) from the tumble generator valve assembly RH.
  6. Remove the tumble generator valve assembly RH from the cylinder head.

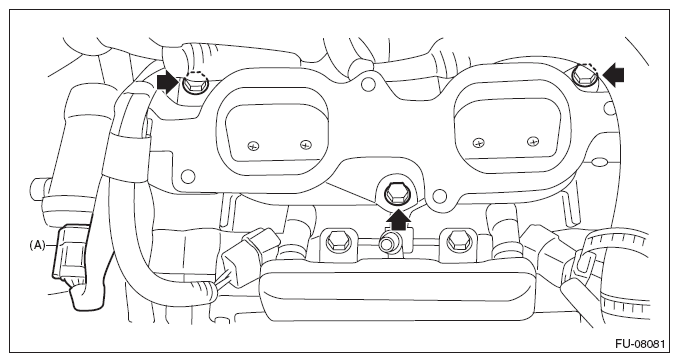

    Fig 2: Locating Bolts Of Tumble Generator Valve Assembly RH
    G09487149Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the cylinder head plate from cylinder head RH.

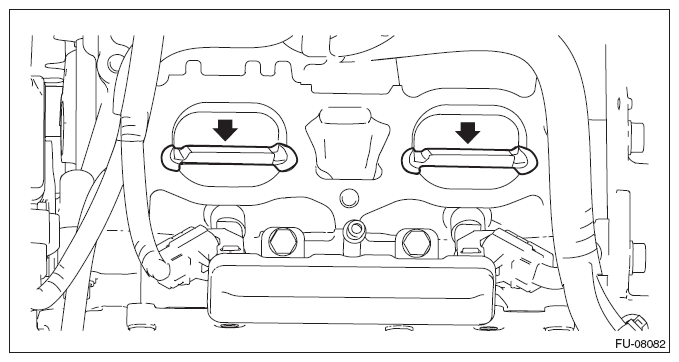

    Fig 3: Locating Cylinder Head Plate From Cylinder Head RH
    G09487150Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the tumble generator valve assembly LH and cylinder head plate in the same manner.
