Tumble Generator Valve Actuator: Installation

Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

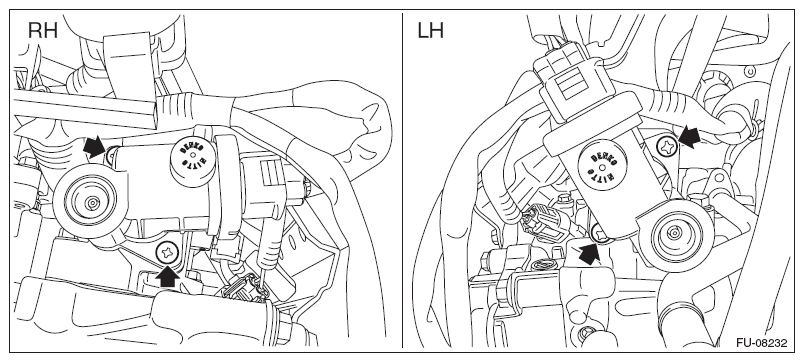

Fig 1: Locating Screws Of Tumble Generator Valve Assembly

Courtesy of SUBARU OF AMERICA, INC.
