Intake Side

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
NOTE: For the 12 volt engine restart battery, disconnect the ground terminal from 12V engine restart battery sensor.
Remove the air intake duct. (RH side only) < Ref. to REMOVAL , Air Intake Duct. >
Remove the reservoir tank. (LH side only) < Ref. to REMOVAL , Reservoir Tank. >
Disconnect the connector (A) from the oil control solenoid, and remove the oil control solenoid from the chain cover.
- RH side

  Fig 1: Locating Oil Control Solenoid Bolts (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

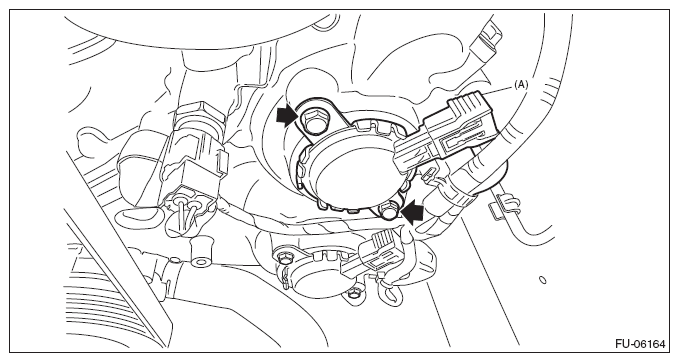

  Fig 2: Locating Oil Control Solenoid Bolts (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
