IG Relay: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Remove the IG relay from the relay block.

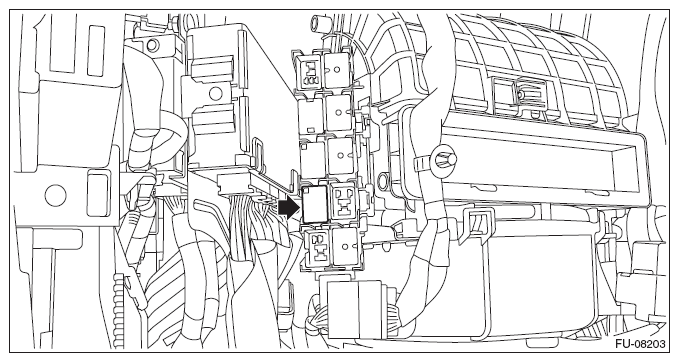

    Fig 1: Locating IG Relay From Relay Block
    G09487174Courtesy of SUBARU OF AMERICA, INC.
