Engine Wiring Harness: Installation

Route the engine wiring harness around the engine and connect connectors.
- Structural diagram 1

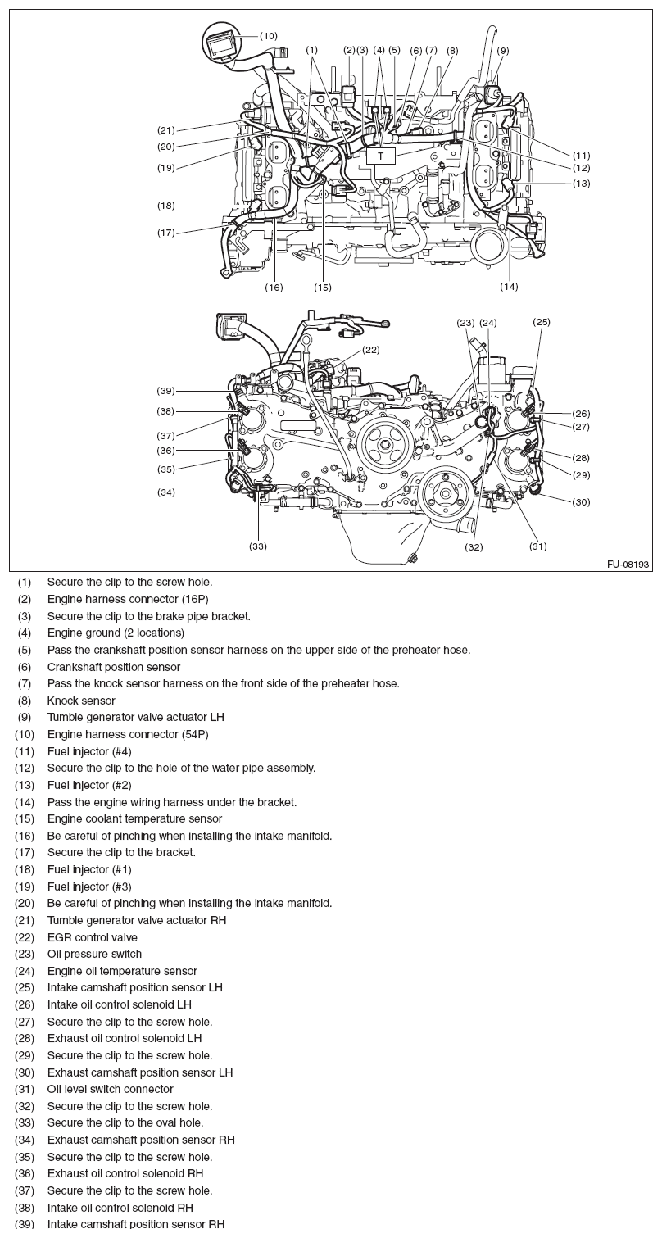

  Fig 1: Engine Wiring Harness Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 19 (1.9, 14.0)
- Structural diagram 2

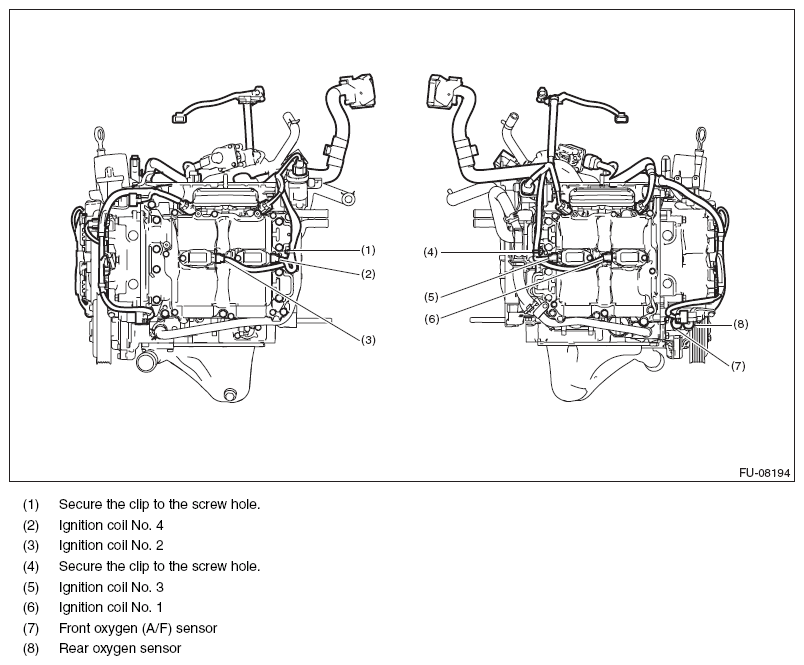

  Fig 2: Engine Wiring Harness Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold. < Ref. to INSTALLATION , Intake Manifold. >
Install the collector cover.
Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note. >
