Universal Joint: Removal

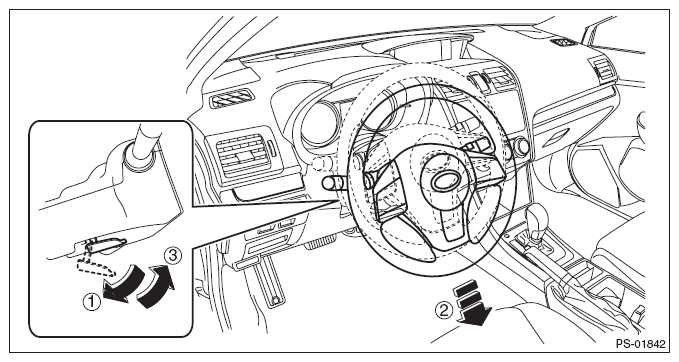

Adjust the tilt position of the column assembly - steering to the lowest position and lock the tilt lever.

Fig 1: Removing Steering Column Assembly
Remove the universal joint assembly - steering.
1. Place alignment marks on the universal joint assembly - steering.
  NOTE: Place alignment marks on the following positions.
  - Between the column assembly - steering and the universal joint assembly - steering
  - Between the steering gearbox assembly and the universal joint assembly - steering
2. Remove the bolt, and remove the universal joint assembly - steering.

  Fig 2: Locating Bolts And Universal Joint Assembly - Steering

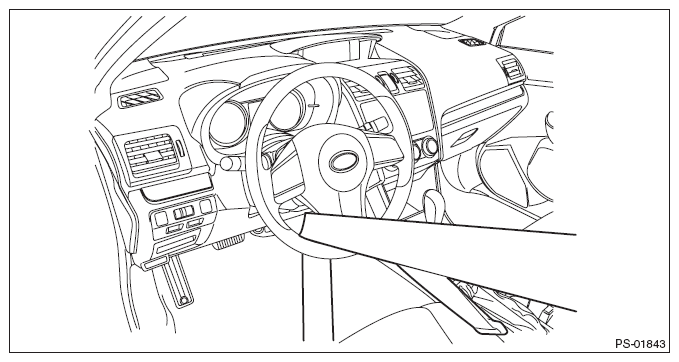

Prevent the steering wheel from turning using the seat belt.

Fig 3: Turning Steering Wheel Using Seat Belt
