Universal Joint: Installation

Before installation, check the universal joint assembly - steering. < Ref. to INSPECTION , Universal Joint. >
Adjust the tilt position of the column assembly - steering to the neutral position and lock the tilt lever.

Fig 1: Installing Steering Column Assembly
Align the cutout portion (a) at serrated section of the column shaft (c) and yoke (b), then install the universal joint assembly - steering into column shaft.
CAUTION: Be sure to align the protrusion section (a) of the column shaft side with the cutout (a) of the serration. If another cutout portions (d) are used for alignment, the bolt of the universal joint assembly - steering cannot be assembled.

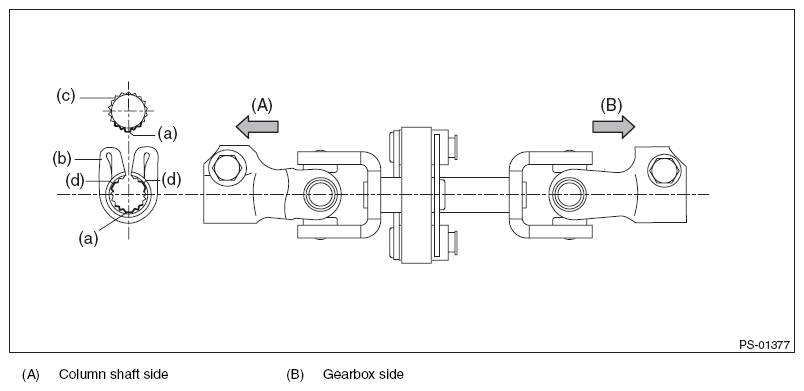

Fig 2: Aligning Cutout Portion Of Column Shaft And Yoke
Install the universal joint assembly - steering to the serrations of the gearbox assembly by matching the alignment marks.
Tighten the bolts on the gearbox side first, and then the column shaft side.
CAUTION: Be sure to follow the tightening order and tightening torque of the universal joint assembly - steering to avoid the steering effort from becoming heavy.

Tightening torque:

24 N.m (2.45 kgf-m, 17.7 ft-lb)

Clearance:

Universal joint assembly - steering coupling to adjacent parts: 15 mm (0.59 in) or more
