IMPREZA Model

  1. Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)

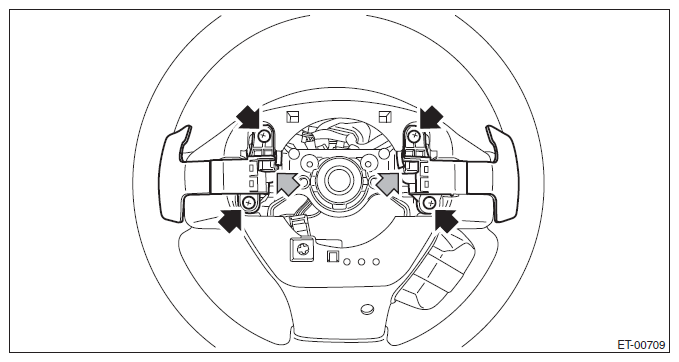

    Fig 1: Locating Paddle Shift Switch Screws
    G08316617
  2. Release the claws and clips, detach the cover - steering wheel LWR.
    NOTE: For model with MID switch, remove the connector and screw.

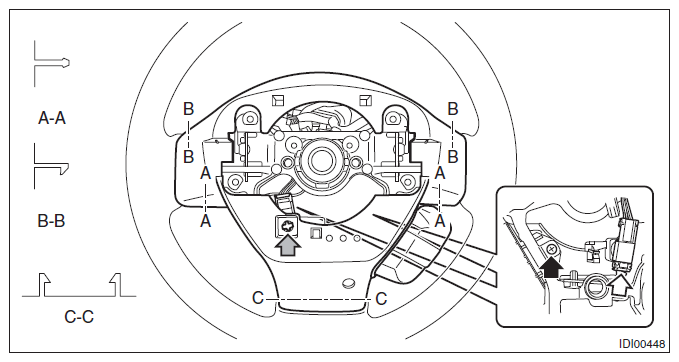

    Fig 2: Locating MID Switch Connector And Screw
    G08316619
  3. Remove the screws and then remove the satellite switch assembly.

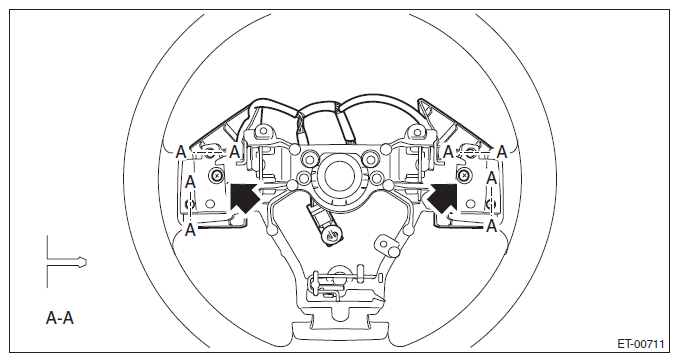

    Fig 3: Locating Satellite Switch Assembly Screws
    G08316620
  4. Remove the MID switch.
    Fig 4: Removing MID Switch
    G08319130
