Steering Wheel And Column

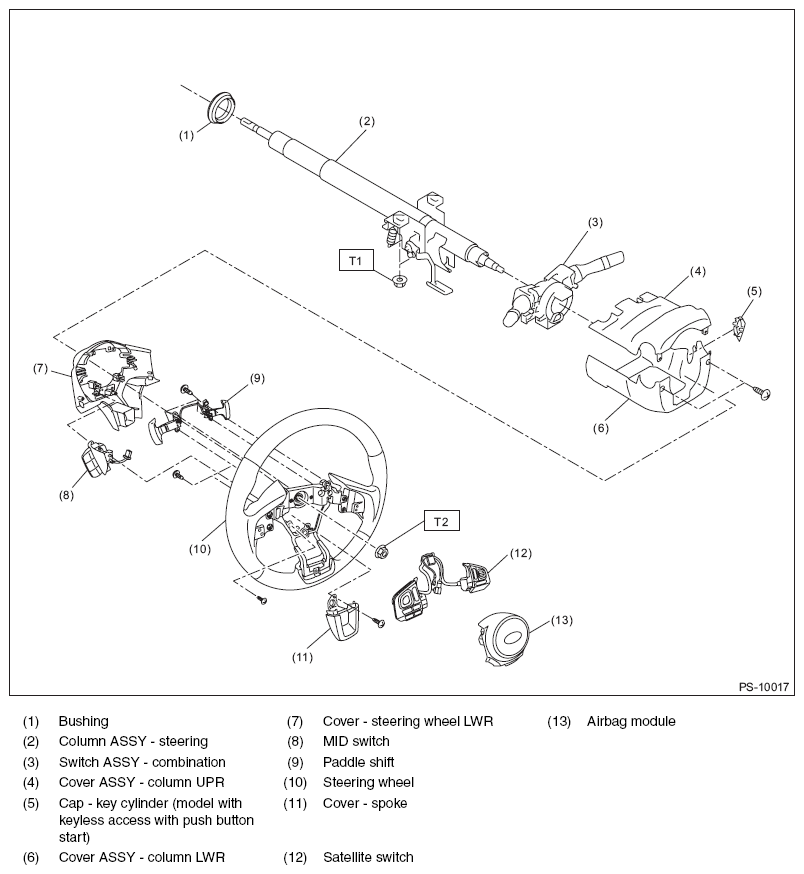

Fig 1: Exploded View Of Steering Wheel And Column (Impreza Model)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.04, 14.8)

T2: 39 (3.98, 28.8)

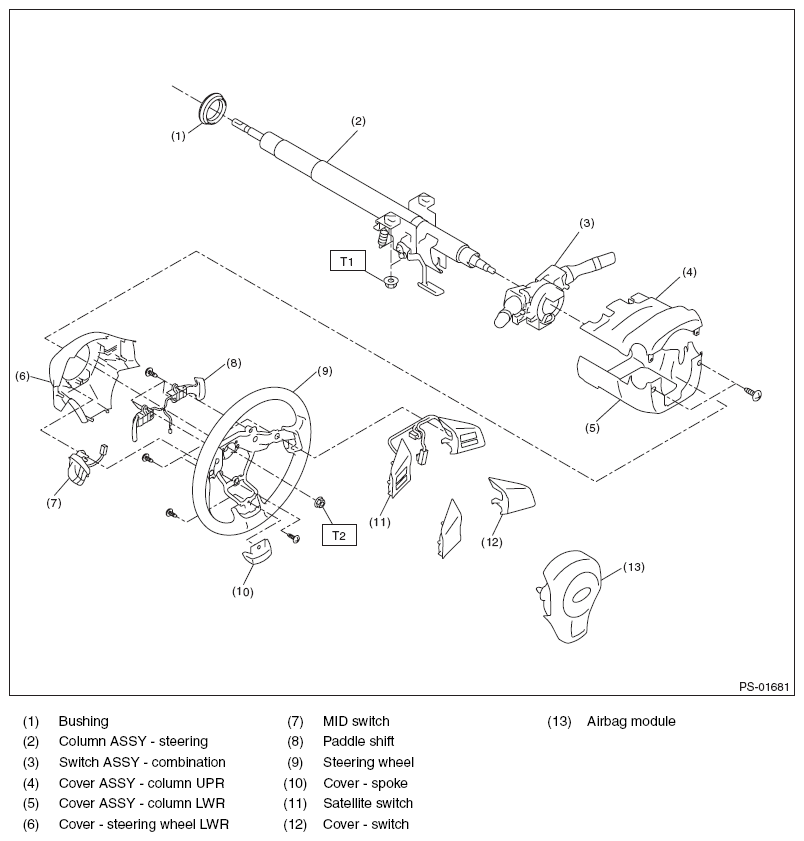

Fig 2: Exploded View Of Steering Wheel And Column (Crosstrek Model)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.04, 14.8)

T2: 39 (3.98, 28.8)
