Rear Seat Belt (5 Door Model/CROSSTREK Model)
Rear Seat Belt (5 Door Model/CROSSTREK Model)

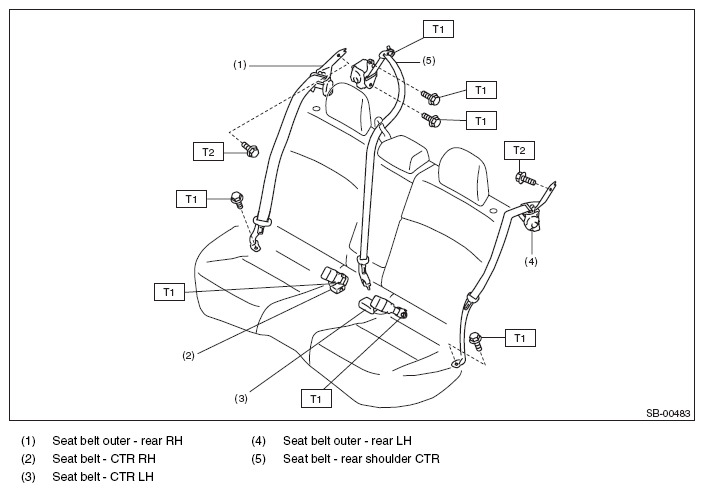

Fig 1: Exploded View Of Rear Seat Belt (5 Door Model/Crosstrek Model)
Tightening torque: N.m (kgf-m, ft-lb)
T1: 30 (3.06, 22.1)
T2: 53 (5.4, 39.1)
