Check List for Interview: Check

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the following items regarding the vehicle's state.

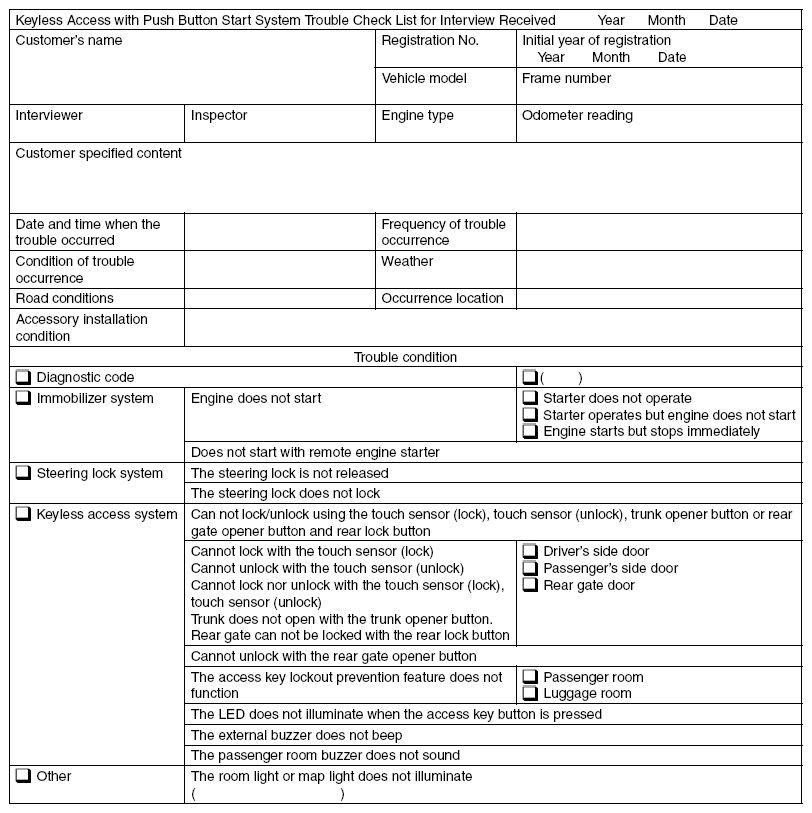

Fig 1: Interview Worksheet
G10219786Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • Perform the diagnostics according to the basic diagnostic procedure.
  • If the room light or map light does not illuminate and the keyless access does not function at the same time, the back-up fuse may be loose or blown.
