Rearview Camera System: Inspection

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Park the vehicle at the level place where there are enough area at the rear of the vehicle.
Attach the tape as the target point for standard at the floor rearward of the vehicle as shown in the figure below.
NOTE: Standard tape width is about 30 - 50 mm (1.18 - 1.97 in) and brilliant color shall be used.

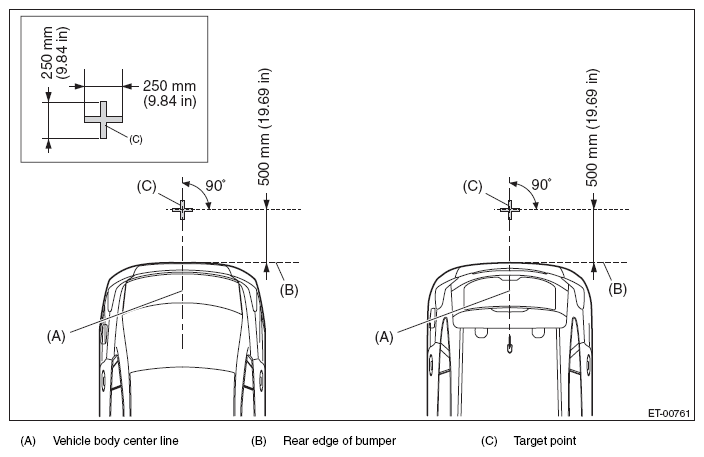

Fig 1: Identifying Vehicle Body Center Line, Rear Edge Of Bumper And Target Point
Courtesy of SUBARU OF AMERICA, INC.
Confirm the following before checking the corresponding items.
- If the display is blank.
  Rearview camera image is not displayed. (Navigation and multi-function display screen is displayed normally.)
  1. Check the condition of back sensor connection.
    - Audio system: <Ref. to ET-6 CHECK EACH VEHICLE SIGNAL , INSPECTION, Audio System.>
    - Navigation system: < Ref. to CHECK EACH VEHICLE SIGNAL , INSPECTION, Navigation System.>
  2. Check the condition of rearview camera connection.
    - Audio system: <Ref. to ET-10, CHECK EACH VEHICLE SIGNAL, INSPECTION, Audio System.>
    - Navigation system: < Ref. to CHECK EACH CONNECTION , INSPECTION, Navigation System.>
- If the marker is not displayed.
- If the marker position is not aligned.
  1. Adjust the marker position according to the MARKER ADJUSTMENT MODE. < Ref. to MARKER ADJUSTMENT MODE , ADJUSTMENT, Rearview Camera System.>
