4 Door Model

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag module. < Ref. to CAUTION , General Description.>

Turn the ignition switch to OFF.
Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.
Remove the trim panel - roof assembly. < Ref. to 4 DOOR MODEL , REMOVAL, Roof Trim.>
Remove the curtain airbag module.
CAUTION:
- Be careful not to damage the curtain airbag module during removal.
- Never open the curtain airbag module before activation. Never reuse the deployed curtain airbag module.
- Remove the modules in order starting from the vehicle front.
1. Remove all the bolts and clips, and remove the curtain airbag module.

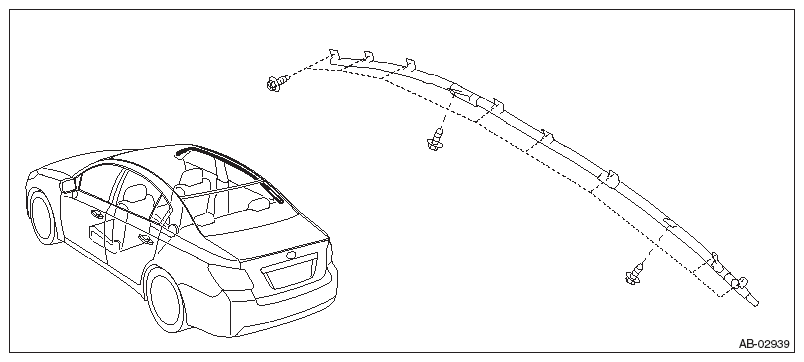

  Fig 1: Identifying Curtain Airbag Module
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the curtain airbag module connector. < Ref. to DRIVER'S AIRBAG MODULE , CURTAIN AIRBAG MODULE & PRETENSIONER, PROCEDURE, Airbag Connector.>

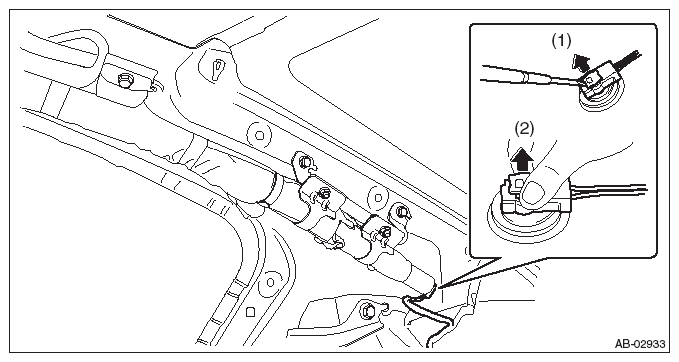

  Fig 2: Disconnecting Curtain Airbag Module Connector
  Courtesy of SUBARU OF AMERICA, INC.
