Passenger's Airbag Module

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

How to disconnect:
CAUTION: When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.
1. Pull the slide lock (A) in the direction of arrow.
2. With the slide lock pulled, disconnect the connector.

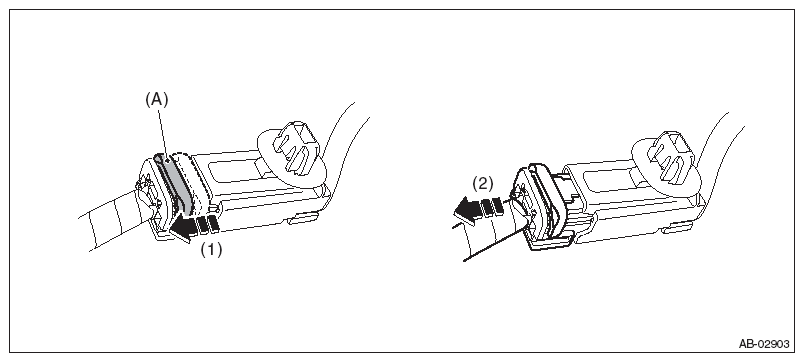

  Fig 1: Disconnecting Passenger Airbag Module Connector
  Courtesy of SUBARU OF AMERICA, INC.
How to connect:
CAUTION: Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

Holding the connector, push it in securely until a clicking sound is heard.

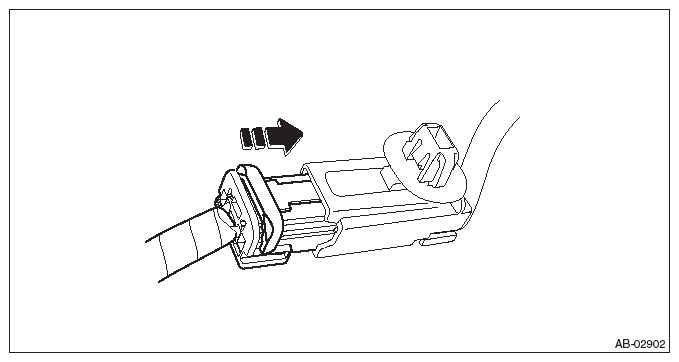

Fig 2: Connecting Passenger Airbag Module Connector
Courtesy of SUBARU OF AMERICA, INC.
