Keyless Buzzer: Removal

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
Lift up the vehicle.
Remove the clips, and turn over the front side of the mud guard - front.

Fig 1: Turning Over Front Side Of Mud Guard - Front
Courtesy of SUBARU OF AMERICA, INC.
Remove the keyless buzzer.
1. Disconnect the connector.
2. Remove the clip and detach the keyless buzzer.
  - Gasoline engine model

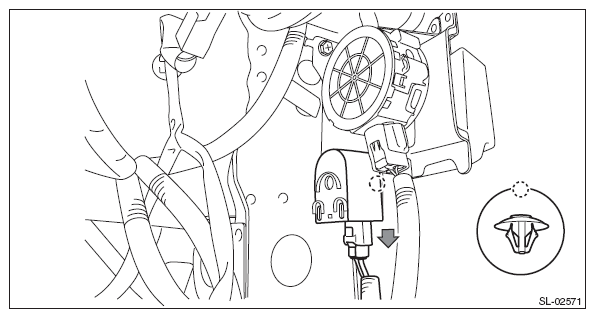

    Fig 2: Removing Keyless Buzzer (Gasoline Engine Model)
    Courtesy of SUBARU OF AMERICA, INC.
  - HEV model

    Fig 3: Removing Keyless Buzzer (HEV Model)
    Courtesy of SUBARU OF AMERICA, INC.
