Instrument Panel Assembly: Installation

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.

Attach components until the instrument panel assembly is formed, in the reverse order of removal.
Tightening torque:

Passenger's airbag module: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

NOTE: Method of installing insulator
- Adhesive
  Use polyurethane adhesive. When assembling the instrument panel assembly, wait until the adhesive has evaporated to prevent filling of the smell in the compartment.
- Double-sided tape
  Use commercial double-sided tape. (Use strong double-sided adhesive tape.)
Insert the matching pins on the body side (three locations - one in the center and the remaining two on both sides) into the instrument panel assembly and the beam COMPL - steering.
Check that the matching pins are inserted securely, and then route the harness.
Secure the instrument panel assembly and the beam COMPL - steering to the vehicle body.
1. Position the instrument panel assembly and the beam COMPL - steering to the vehicle body and tighten the adjuster - clip space.
  Preparation tool:

  Hexagon wrench: 8 mm (0.31 in)

  NOTE: Tighten so that there is no gap between the adjuster portion (h) and the body.

  Tightening torque:

  Adjuster - clip space: 0.4 - 4 N.m (0.04 - 0.41 kgf-m, 0.3 - 2.95 ft-lb)

  Fig 1: Identifying Gap Between Adjuster Portion
  Courtesy of SUBARU OF AMERICA, INC.
2. Temporarily tighten the bolts (a), (b), (c) and (d) of the beam COMPL - steering.

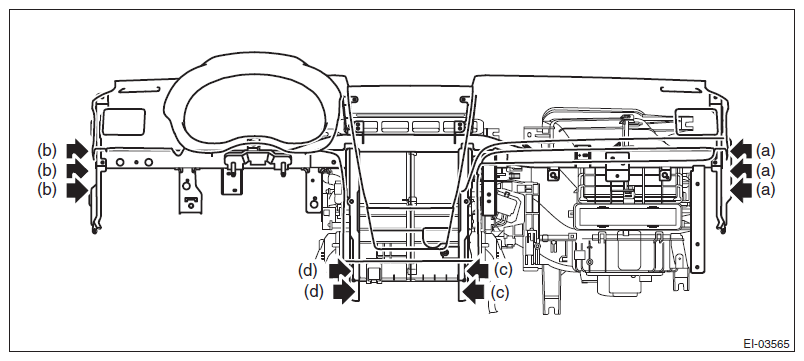

  Fig 2: Locating Bolts Of Beam COMPL - Steering
  Courtesy of SUBARU OF AMERICA, INC.
3. Tighten the beam COMPL - steering in the order from (a) to (d) to the specified torque.
  Tightening torque:

  Beam COMPL - steering: 25 N.m (2.55 kgf-m, 18.4 ft-lb)
Install each part in the reverse order of removal.
CAUTION:
- After installing the panel center assembly, check that the air vent grille of the panel center assembly is inserted correctly into the air vent duct.
- When installing the cover - instrument panel side (a), make sure that the body side weather strip - flange front does not come inside the panel COMPL - instrument (b).

  Fig 3: Caution For Installing Cover - Instrument Panel Side
  Courtesy of SUBARU OF AMERICA, INC.
- When reusing the tether clip on the upper part of the trim panel - front pillar UPR, check that there is no damage to the tether clip. If the tether clip is damaged, its holding force is reduced and the trim panel - front pillar UPR may come off. Be sure to replace it with a new tether clip.
- Do not reuse the tether clip removed from the upper part of the trim panel - front pillar UPR. Always replace with a new part.
- Check the installation status of the tether clips and install the trim panel - front pillar UPR.

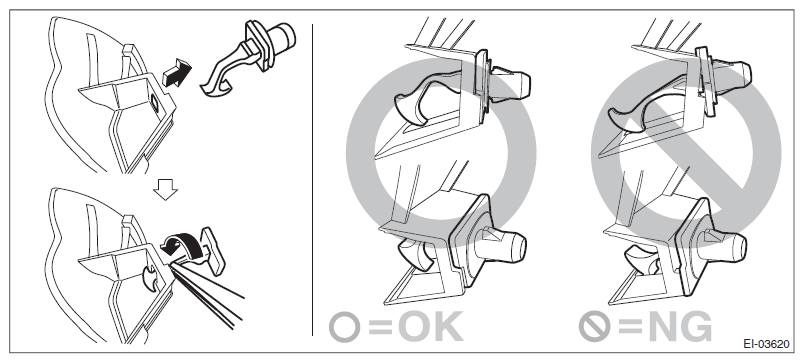

Fig 4: Installing Trim Panel - Front Pillar UPR
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Column assembly - steering: < Ref. to STEERING WHEEL AND COLUMN , COMPONENT, General Description.>

Console box assembly: 6.5 N.m (0.66 kgf-m, 4.8 ft-lb)
