Valve ASSY

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

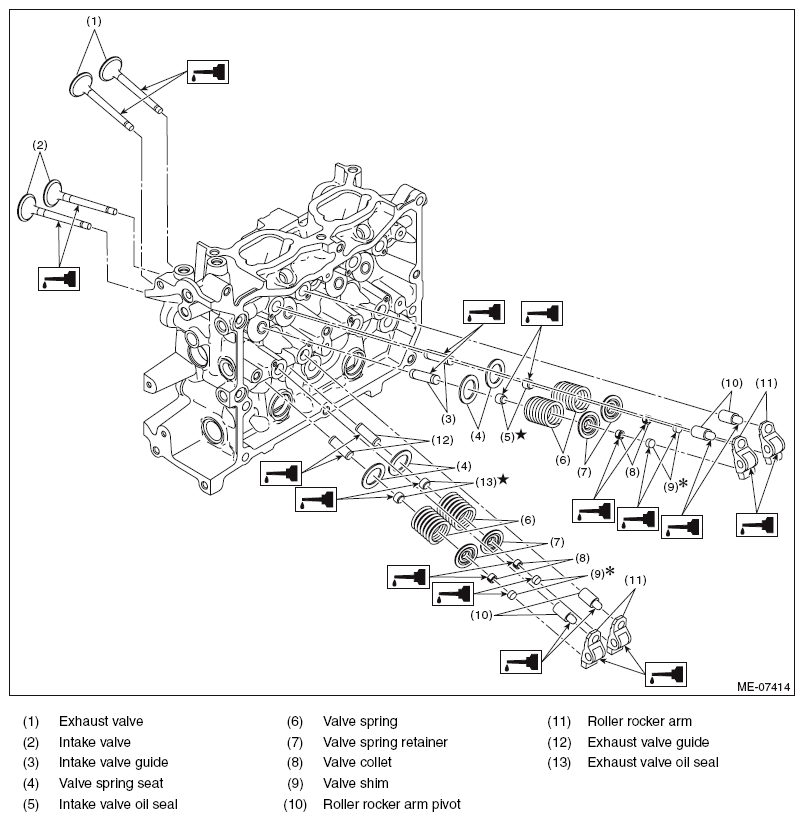

Fig 1: Identifying Valve Assy Components
G09485986Courtesy of SUBARU OF AMERICA, INC.
