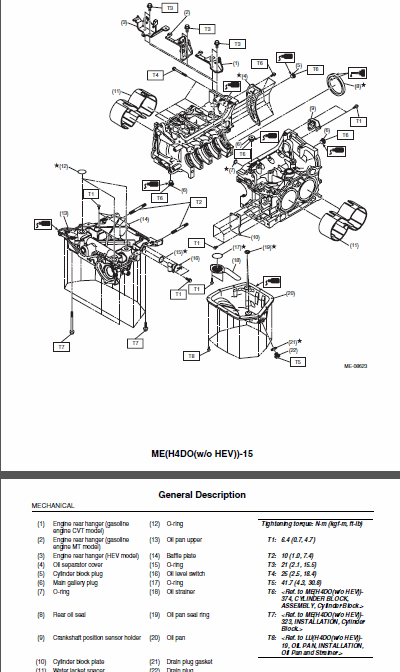

Cylinder Block 1
WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 10 (1.0, 7.4)
T3: 21 (2.1, 15.5)
T4: 25 (2.5, 18.4)
T5: 41.7 (4.3, 30.8)
T6: < Ref. to CYLINDER BLOCK , ASSEMBLY, Cylinder Block.>
T7: < Ref. to INSTALLATION , Cylinder Block.>
T8: < Ref. to OIL PAN , INSTALLATION, Oil Pan and Strainer.>
