Chain Cover: Assembly

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft position sensor. < Ref. to INSTALLATION , Camshaft Position Sensor.> < Ref. to INSTALLATION , Camshaft Position Sensor.>
  2. Install the oil control solenoid. < Ref. to INSTALLATION , Oil Control Solenoid.> < Ref. to INSTALLATION , Oil Control Solenoid.>
  3. Install the engine oil temperature sensor. < Ref. to INSTALLATION , Engine Oil Temperature Sensor.> < Ref. to INSTALLATION , Engine Oil Temperature Sensor.>
  4. Install the oil pressure switch. < Ref. to INSTALLATION , Oil Pressure Switch.>
  5. Install the engine oil filter and the oil pump union. < Ref. to INSTALLATION , Engine Oil Filter.>
  6. Install the oil filler cap.

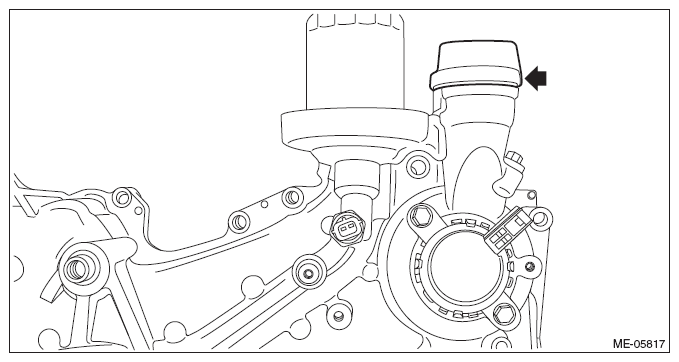

    Fig 1: Locating Oil Filler Cap
    G08316938Courtesy of SUBARU OF AMERICA, INC.
